Gem News International Gems & Gemology, Fall 2014, Vol. 50, No. 3

Color-Change Garnet in Diamond

Garnet Crystal Inclusion Photomicrograph
Figure 1. This inclusion, a color-change pyrope-spessartine garnet crystal in diamond, appeared grayish green in fluorescent light (left) and purplish red in incandescent light (right). Photomicrographs by Meenakshi Chauhan; field of view 2 mm (left) and 3 mm (right).

The Indian Gemological Institute’s Gem Testing Laboratory recently examined a 0.30 ct colorless round brilliant-cut diamond containing an interesting inclusion. Infrared spectroscopy revealed features found in type IaA diamond, with a slight absorption peak due to hydrogen impurities. With a clarity grade of SI2, the diamond contained several colorless crystals and one surface-breaking grayish green crystal (figure 1, left). Under incandescent light, the grayish green crystal appeared purplish red (figure 1, right), displaying a strong color-change phenomenon.

Under the Chelsea filter the inclusion showed a bright red reaction, suggesting the presence of chromium. There was a polished area of the included crystal on the surface, but it was too small for us to measure the refractive index.

The included crystal did not display pleochroism under microscopic observation with crossed polarizers. Viewed in immersion, it appeared to be singly refractive. DiamondView imaging showed the fluorescence pattern of growth planes found in natural diamond (figure 2). Typical octahedral growth zones of blue N3 fluorescence were evident, with no disturbance in the zones around the color-change crystal.

Octahedral Growth Zones
Figure 2. This DiamondView image of the host diamond shows octahedral growth zones (notice the crystal inclusions). Image by Meenakshi Chauhan.

For conclusive identification of the inclusion, we sent the diamond to the Gem Testing Laboratory in Jaipur for laser Raman spectroscopy. As the color-change crystal broke through the diamond’s surface, a clear Raman spectrum could be obtained (figure 3). The peak at approximately 1332 cm–1 is assigned to diamond, and the peaks at approximately 1046, 910, 858, 637, 549, and 362 cm–1 are assigned to garnet. The 910 cm–1 peak is associated with the pyralspite isomorphous series, which is comprised of pyrope, almandine, and spessartine garnet. The inclusion was therefore identified as garnet belonging to the pyralspite series.

Raman Spectrum

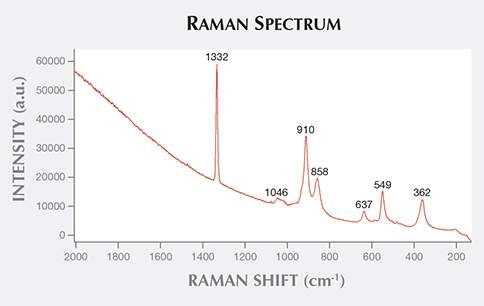

Figure 3. The Raman spectrum of the color-change pyrope-spessartine garnet inclusion showed the 1046, 910, 858, 637, 549, and 362 cm–1 peaks assigned to garnet. The 1332 cm–1 peak is assigned to diamond.

Meenakshi Chauhan is executive gemologist at the Indian Gemological Institute Gem Testing Laboratory, GJEPC, in New Delhi.
