Spring 2015 G&G Examines Blue Spinel, Chinese Jewelry Design and the Latest in Synthetics


Placeholder Alt Text
The lead article in this issue examines the geological and gemological characteristics of blue spinel from Luc Yen, Vietnam. The centerpiece of the 18k yellow gold ring from the Love Doves collection is a 4.95 ct. marquise-cut spinel, framed on either side by doves with ruby eyes. Photo by Robert Weldon/GIA, courtesy of Loretta Castoro. The gem-quality blue spinel octahedron associated with olivine in marble matrix was seen at a mine in the Luc Yen district. Photo by Vincent Pardieu/GIA. Composite image by Kevin Schumacher.
The Spring 2015 issue of Gems & Gemology features an array of reports from around the globe and a cover article on one of the major sources of blue spinel: Luc Yen in Vietnam.
Blue spinel is rare in nature and not well-known in world gem markets, but its color rivals that of sapphire. Luc Yen, located about 100 miles from Hanoi, has been a source for gem-quality ruby, sapphire and red spinel for the past 25 years. Blue spinel is a more recent discovery, not mined in significant quantities until a decade ago. The gems come from three deposits and are hard-won, requiring a four-hour hike, rising 1,800 feet through dense foliage to reach the mine sites.

In primary deposits, the blue spinel crystals are found in a marble layer some 1,500-feet thick. Miners – primarily local farmers working part time – extract it using hand tools and jackhammers. However, most of the blue spinels, along with their red counterparts, are found in secondary deposits, where they eroded out of their host rocks and washed into the valleys. Here, the miners use a water hose and sluice to sort out the gem-bearing gravels, which can also include ruby and sapphire.

The authors (Boris Chauvire, Benjamin Rondeau, Emmanuel Fritsch, Phillipe Ressigeac and Jean Lu-Luc Devidal) conducted extensive gemological analyses of samples they purchased from local merchants. The colors and saturation varied from deposit to deposit, but ranged from violet-blue to blue and slightly grayish to vivid saturation, and very light to medium-dark tone. Analysis found the most vibrant blue colors came from trace amounts of cobalt, which is similar to blue spinel from some other locations. In addition, the authors present a lot of information on the geology along with a hypothesis on the gems’ geologic origin.

The Chinese Soul in Contemporary Jewelry Design

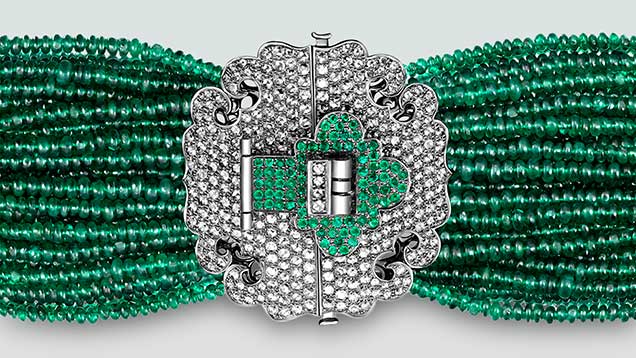

This diamond and emerald bracelet is from Dickson Yewn’s “Lock of Good Wishes” collection. The four corners of the lock panel are decorated with simplified bat patterns, which symbolize good luck and happiness in Chinese culture. The clasp is a realistic recreation of an ordinary gate lock from ancient China. The concept is typically used in baby jewelry to make the wearer feel blessed throughout life, and Yewn has successfully applied it to adult pieces. Photo courtesy of Dickson Yewn
Historically, Chinese culture - and jewelry design/tastes - was known for its dragon, bamboo and phoenix motifs, as well as its symbolic writing for millennia. Today, China is the world’s second largest jewelry market with a growing penchant for brand names and luxury. GIA staff authors, Andrew Lucas, Merilee Chapin, Moqing Lin and Xiaodan Jia profile six designers whose work incorporates traditional motifs and materials with modern sensibilities, combined with traditional Chinese and Western techniques.

  • Hong Kong designer Dickson Yewn incorporates traditional door lock motifs and lattice windows in his emerald pieces. The lock motif in the bracelet is meant to symbolize health and happiness to the wearer. The window lattice ring design was patterned after the Classical Gardens of Suzhou, and was worn by Michelle Obama at a banquet honoring Queen Elizabeth.
  • Master Jingyi Bai, who learned her craft from master goldsmiths, creates traditional filigree and inlay art objects. She also creates replicas of historic pieces in the style of the old masters.
  • Taiwanese designer Yue-Yo Wang incorporates ancient art of knotting into modern-styled pieces that feature colored gemstones such as rose quartz, chalcedony, tourmaline and, of course, jadeite. Jadeite is one of the strongest traditions in Chinese jewel craft and Shanghai designer Kaka Zhang creates jadeite pieces of traditional fairy tale characters that she markets mainly online.
  • Shirley Zhang, working from Shenzhen, creates highly intricate pieces that combine ancient motifs and innovative techniques, such as gem setting that enables more light to pass through the stones.One of her award winning pieces, “Dancing on Flowers,” features 1,002 colored stones and 4,986 small diamonds in a suite of three pieces featuring blossoms and bees to symbolize diligence and beauty.
  • Jin Ren, of Beijing, bases some of his designs on mythological characters such as the Monkey King. He created a suite of jewels with colorless, yellow and black diamond arranged in a snakeskin motif to symbolize renewal, as when a snake sheds his skin.

Amethyst from Boudi, Morocco

Amethyst is one of the most popular gemstones in world markets, and authors Fabrizio Troilo, Abdelghani El Harfi, Salahaddine Mouaddib, Erica Bittarello and Emanuele Costa, from the Instituto Gemmologico Italiano and universities in Italy and Morocco, examined material from the Boudi area of Morocco that is being commercially mined.

While much of the Boudi production has color and properties similar to amethyst found in other parts of the world, it does produce some fine reddish-purple gems that resemble top-quality from classic deposits.

Visible Absorption Spectra of Colored Diamonds

GIA researchers Dr. James Shigley and Dr. Christopher Breeding present a review of the absorption features of yellow, pink to red, gray to blue and orange to brown diamonds.

Colorless diamonds have few or no trace elements or growth defects (such as misaligned crystal structure) to absorb certain colors of the spectrum from the light that passes through them, so the light returned is “white.” Elements such as nitrogen and boron, however, absorb certain colors of the spectrum, so the light returned is yellow or blue. Other factors can also cause diamond color. Natural or artificial radiation displaces some of the carbons atoms from the crystal structure of the diamond to create vacancies that cause green color.

The authors created a color chart that shows visible absorption spectra for a range of colored diamonds to serve as a reference tool for researchers and gemologists.

Mozambique: A Ruby Discovery for the 21st Century

The final full article is from a G&G staff field trip to the Montepuez ruby deposit in Mozambique. The article details the geology of the area that has produced the largest ruby find in recent history and how the rough gems are mined, sorted and graded for sale. The authors, Merilee Chapin, Vincent Pardieu and Andrew Lucas, detail the nature of the rubies in comparison with those from other sources.

Lab Notes

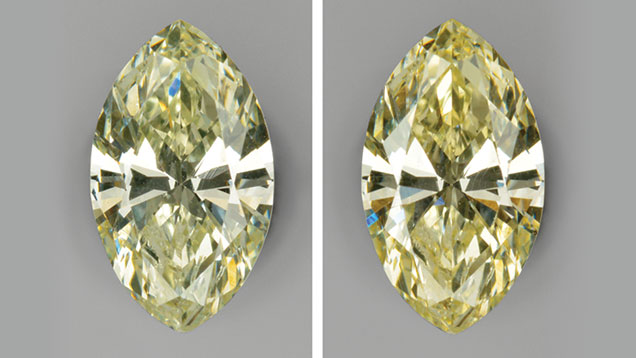

The chameleon diamond is shown before and after heating (left and right).
This issue features an entry on techniques for identifying very small synthetic diamonds using a microscope equipped with a Fourier-transform infrared (FTIR) spectrometer. The report notes that GIA has seen a surge in faceted melee goods submitted for identification. Combining the FTIR spectrometer with the microscope has enabled GIA researchers to get accurate spectra readings for diamonds as small as .00054 carats. It had been difficult to retrieve proper spectra for diamonds under .01 carat (ct.) before this, because readings were often indistinct and had to be taken while the diamond was in a set position. This set-up allows clear readings to be taken independently of a diamond’s position whether mounted in jewelry or loose.

The above method was also used to examine a pendant holding 118 diamonds, including 58 fancy yellows and 60 colorless stones. GIA staff found one HPHT grown synthetic weighing .00431 ct. Nearly all of the other diamonds were natural type 1aA or type 1aAB.

In Hong Kong, GIA recently examined two large synthetic colorless diamonds, submitted with full disclosure by a Russian producer. One was a 4.30 ct. D SI1; the other a 5.11 ct. K I1. Both were HPHT grown and contained distinctive metallic inclusions. The quality and size of these diamonds demonstrates that HPHT synthetic technology has made great strides in recent years.

GIA staff in New York examined two chameleon diamonds, a 0.35 ct. Fancy Deep yellow-green and a 0.27 ct. Fancy Deep grayish yellowish green marquise cuts. Spectral analysis revealed that these diamonds were irradiated to enhance their body color – a process not usually performed on chameleon stones.

Additional GIA lab notes include an analysis of a large (13.69 mm x 11.80 mm) fine color Quahog pearl with very good symmetry and shape; a report on large specimens of pink and reddish purple cobaltocalcite; a diamond that contains a tiny diamond inclusion that formed in a different geologic environment; and conservation concerns over use of a natural large saltwater clam shell (Tridacna) beads in imitation pearls as all species in this family of mollusks are listed in Appendix II of the Convention on International Trade in Endangered Species of Wild Fauna and Flora (CITES).

Russell Shor is senior industry analyst at GIA in Carlsbad.

Gems & Gemology is GIA’s quarterly technical journal, reporting the latest advances in gemological research since 1934. G&G Brief presents an overview of the content of the latest issue of the journal.
