Lab Notes Gems & Gemology, Winter 2014, Vol. 50, No. 4

Mixed-Type HPHT Synthetic Diamond with Unusual Growth Features


HPHT-grown synthetic diamond

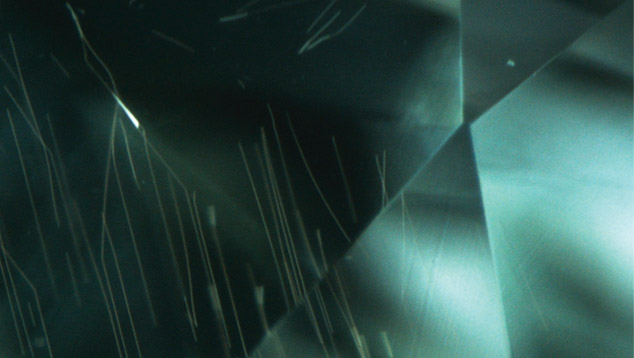

Figure 1. These growth tube features were visible through the table of the HPHT-grown synthetic diamond. Photomicrograph by Troy Ardon; magnified approximately 90×.

A 0.28 ct round brilliant was submitted as synthetic moissanite to the Carlsbad lab for an identification report. At first glance, synthetic moissanite seemed like a possibility. The stone had a green-yellow color and contained numerous growth tubes visible through the table (figure 1). Yet it did not show doubling in the microscope, which is a characteristic feature of synthetic moissanite. Its infrared spectrum was a match for diamond. The infrared spectrum also showed a very unusual combination of boron and nitrogen impurities at 2804 and 1130 cm–1, respectively (figure 2). These two impurities are not known to occur together in natural diamonds in measurable quantities. This was a strong indicator of synthetic origin. A DiamondView image (figure 3) confirmed that it was synthetic, grown by the high-pressure, high-temperature (HPHT) method. It is noteworthy that after the sample was removed from the DiamondView, it showed very strong blue phosphorescence that was clearly visible in ambient room lighting and persisted for several minutes.

HPHT-grown synthetic diamond

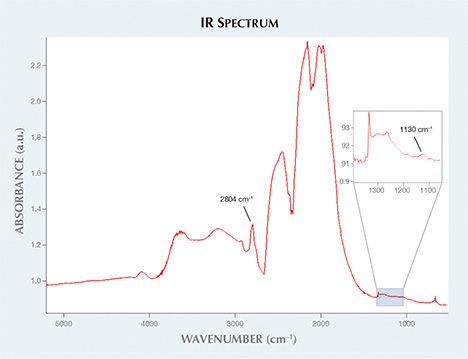

Figure 2. The HPHT-grown synthetic diamond’s infrared spectrum shows peaks related to both boron and single nitrogen.
DiamondView image

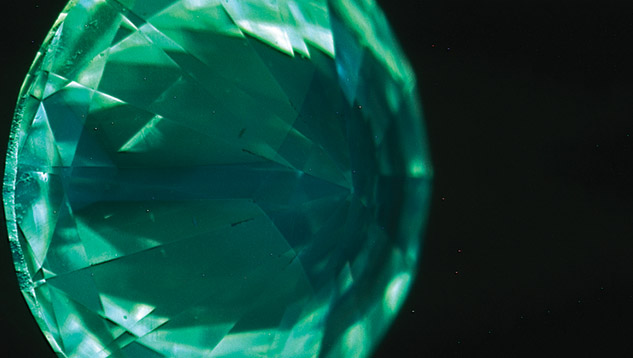

Figure 3. This DiamondView image shows the characteristic growth pattern of an HPHT synthetic diamond. Image by Troy Ardon.

Unless special precautions are taken, diamond synthesis will incorporate nitrogen into the lattice, which leads to a yellow bodycolor. Certain chemicals can be added to prevent the incorporation of nitrogen, and this can lead to colorless diamonds. If boron is introduced to the growth of synthetic diamonds, it will become incorporated and produce a blue bodycolor. If both boron and nitrogen are allowed to incorporate into the lattice, the blue and yellow bodycolors will combine to produce a green color (J.E. Shigley et al., “Lab-grown colored diamonds from Chatham Created Gems,” Summer 2004 G&G, pp. 128–145). Since boron is an electron acceptor and nitrogen is an electron donor, an excess of boron will compensate the nitrogen and the blue color will predominate. Because nitrogen and boron have slight preferences for different growth sectors, if the concentration of both nitrogen and boron is carefully controlled, nitrogen and boron will dominate different growth sectors. The colors will blend to create a face-up greenish color (R.C. Burns et al., “Growth-sector dependence of optical features in large synthetic diamonds,” Journal of Crystal Growth, Vol. 104, No. 2, 1990, pp. 257–279).

The growth tubes in this sample were an unusual feature, last seen in a selection of HPHT-grown synthetics several years ago at GIA’s West Coast laboratory. They appear similar to synthetic moissanite growth tubes, though there are a few key differences. Whereas the growth tubes occur in only one direction in synthetic moissanite, they could be seen growing in different directions in this synthetic diamond. The tubes in synthetic moissanite also tend to be very straight, while the ones in this sample curved and changed direction. Although this stone bore some superficial resemblance to moissanite, its gemological properties were quite different, another reminder to avoid quick sight identifications.

Troy Ardon is a staff gemologist and diamond color origin specialist at GIA's laboratory in Carlsbad, California.
