This study was sparked by a 2017 comment from noted Australian gemologist Terry Coldham. In Bangkok he ran into a friend with a parcel of Madagascar sapphire. Mr. Coldham’s friend said he was going “to the burner,” hoping to “sweeten” the color with a low-temperature treatment that would lighten the hue. He indicated that the temperatures they were using were likely below 1000°C. This coincided with the sapphire rush at Bemainty (Perkins, 2016) that produced high-quality blue sapphires (figure 1), ranging from lighter colors with a lower iron content to much deeper blues with a higher iron content (Pardieu et al., 2017).
The abundance of blue sapphires from Madagascar being tested at Lotus Gemology in Bangkok, along with rumors of lower-temperature heat treatment (see “Defining ‘Low’ Temperature” below), suggested the need for further study and heat treatment experiments on this material. Our aim was to record the characteristics of Madagascar sapphires and to detect this type of heat treatment.
Approximately 750–500 million years ago, Madagascar was a part of the Gondwana supercontinent, sandwiched between what are now East Africa, southern India, and Sri Lanka. Today this region, known as the Mozambique (Pan-African) Orogenic Belt, is home to some of the world’s richest corundum deposits (Hughes et al., 2017). Many regions that were a part of this belt are now the world’s top producers of ruby and sapphire (see figure 2, left).
The majority of sapphire in Madagascar is metamorphic (though basalt-related sapphire is found in the far north) and recovered from secondary deposits (figure 2, right). It is not certain when these sapphires would have formed, but the literature suggests that they are likely 650–560 million years old (Kröner et al., 1999; Link, 2015).
Figure 2. Left: This map of Gondwanaland illustrates how close Sri Lanka and Madagascar were to each other when their sapphire deposits were forming. This proximity may account for the similarities between much of the blue sapphire from the two origins. Right: Map of Madagascar, including the most notable corundum localities. Ilakaka, Bemainty, and Andranondambo, the sources of samples used in this experiment, are highlighted in red. Maps by Richard Hughes.
Because of Madagascar’s proximity to modern-day Sri Lanka at the time when sapphires were forming within the earth, it is understandable that there would be an overlap between sapphires from these two origins in terms of colors and internal features, sometimes making them difficult to separate.
The island of Madagascar, one of the most biodiverse in the world, offers an incredible wealth of gems. Some estimate that potentially 90% of the land is gem-bearing (Hughes, 2006). Most of the important ruby and sapphire finds are concentrated toward the eastern part of the island. Significant gem rushes at primary-type deposits near Andrebabe, Andilamena, and Didy lie on the boundary between the Antananarivo and Tsaratanana units (Rakotondrazafy et al., 2008; Pardieu et al., 2017). In the south there has been notable production of both blue and fancy-color sapphire, with mining and trading concentrated around the town of Ilakaka (figure 3).

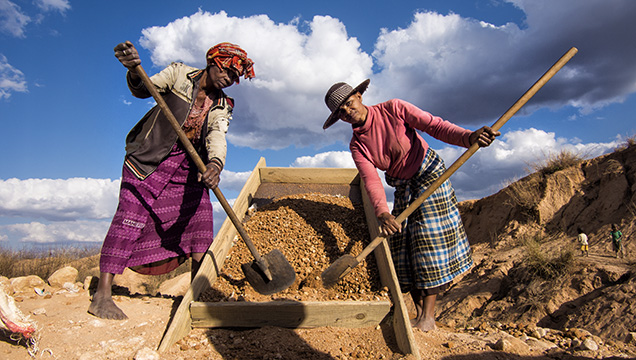

Figure 3. Miners move gem-bearing gravel near Ilakaka. Most of the sapphire production in Madagascar is by small-scale miners working with artisanal tools. Photo by E. Billie Hughes.

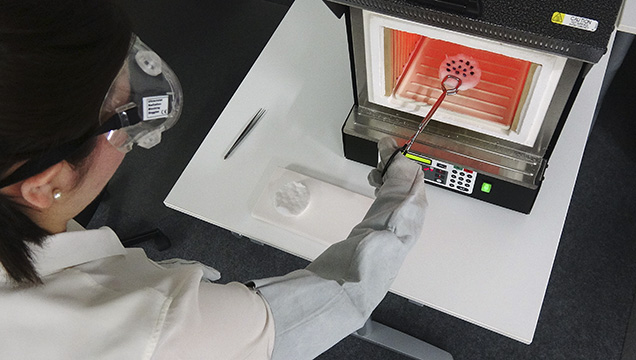

Figure 4. E. Billie Hughes removes the samples from the Vulcan 3-550 oven after a heating session. Photo by Rosey Perkins.

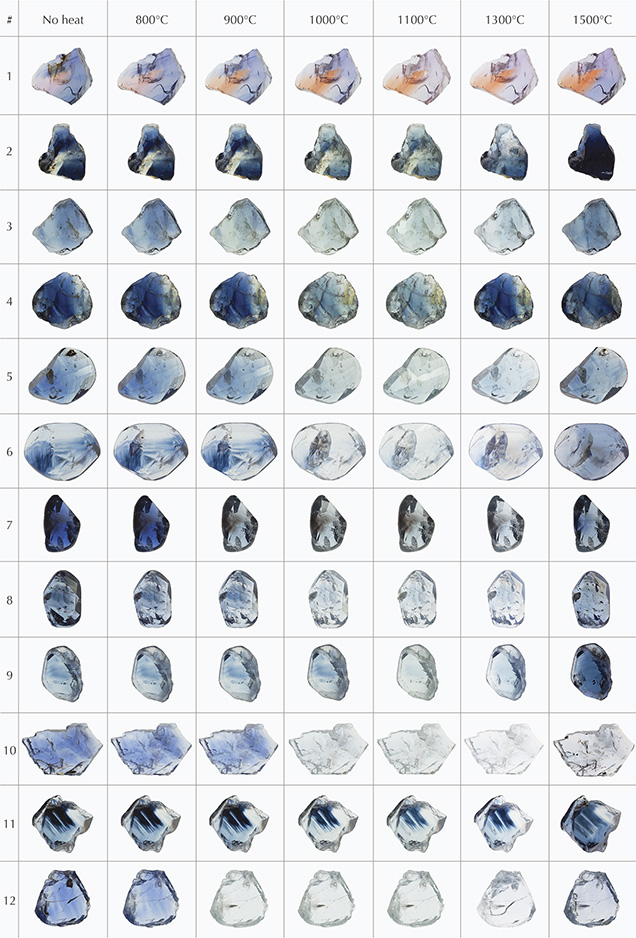

Figure 5. The 12 samples, shown before and after heating to each temperature. Most of the samples began to lighten significantly after heating to about 900–1000°C and started to deepen in color again around 1300°C. After heating to 1500°C, many pieces became significantly deeper in color. Photos not to scale. Photos by Rosey Perkins and Sora-at Manorotkul.
Sample 1, unlike the others tested, had a strong pink zone in addition to blue color zoning. This pink zone became a stronger orange with each round of heating (this has long been rumored to take place in Sri Lanka). The blue zoning in the piece started to lighten and turn a purplish color, particularly after heating to 1100–1300°C, and started to become more strongly blue again after heating to 1500°C.
Inclusions. Inclusion photomicrographs were taken with a Canon EOS 6D camera connected to an Olympus SZX16 microscope using an SDF PLAPO 0.8¥ lens. A variety of inclusions showed signs of alteration once the stones were heated. Some of the changes started to become evident after the first round of heating at 800°C, while others developed at higher temperatures. Many of the changes that began at lower temperatures became increasingly dramatic as temperatures rose.
One of the first changes we began to notice was the development of fissures. Even after the first rounds of heating at 800°C and 900°C, shiny fissures appeared around many of the included crystals. As the stones were heated to higher temperatures, such fissures tended to grow larger, with glassy areas, evident in figures 7, 8, 9, and 11. Around 1300°C, some of these glassy areas started to “neck down” and form small bubbly channels that looked like “fingerprints” (Hughes and Emmett, 2004). In sample 3, which had a large partially healed fissure even before heat treatment, some of the tube-like channels in the fissure displayed clear signs of alteration after heat to 1500°C and developed rounded shapes (figure 6).

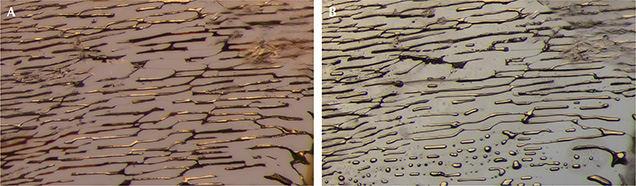

Figure 6. A: Partially healed fissure, or “fingerprint,” in sample 3 before heating. Note the elongated, tube-like channels. B: After heating the stone to 1500°C, many of the jagged edges of the tubes have become rounded, and some even “neck down” to form smaller, rounded shapes in place of elongated tubes (Hughes, 2017). Diffuse transmitted light. Photomicrographs by E. Billie Hughes; field of view 1 mm.

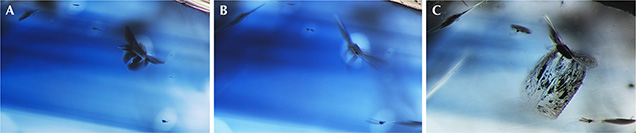

Figure 7. A: In sample 4 before heating, a cluster of transparent crystals surrounded by winged stress fractures has decolorized areas around them. B: After the first round of heating at 800°C, we can already observe small changes, as two of the crystals have developed larger glassy fractures than they had originally. C: By the time the sample is heated to 1100°C, significant differences have emerged. The previously smooth and glassy fissures around the crystals have become larger and begun to heal, creating a “fingerprint” appearance. Also note that the decolorized areas are much less prominent, and that the overall blue color of the stone has become lighter. Brightfield illumination, with blue and white diffusing filters. A blue diffusing filter is used to color-correct the light source, which has a yellow tint, to make it more neutral. Photomicrographs by E. Billie Hughes; field of view 1.8 mm.

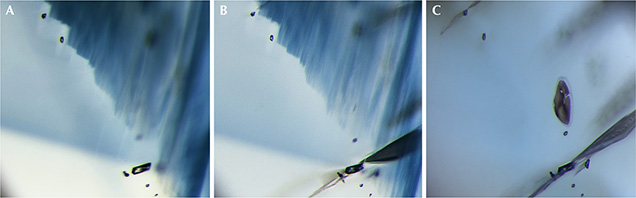

Figure 8. A: Before heat treatment, sample 6 shows a group of small crystals within decolorized areas as well as distinctive swaths of color zoning. B: At 900°C, the largest crystal has developed a large, shiny fracture around it, and the color zoning has lightened slightly. C: As we heat to higher levels, these fissures begin to heal at the edges. By our last round of heat, at 1500°C, other small crystals have also developed glassy fractures that are starting to heal. Any traces of the previously prominent color zoning are almost gone, and the stone has a more even light blue color. Brightfield illumination with blue and white diffusing filters. Photomicrographs by E. Billie Hughes; field of view 1.2 mm.

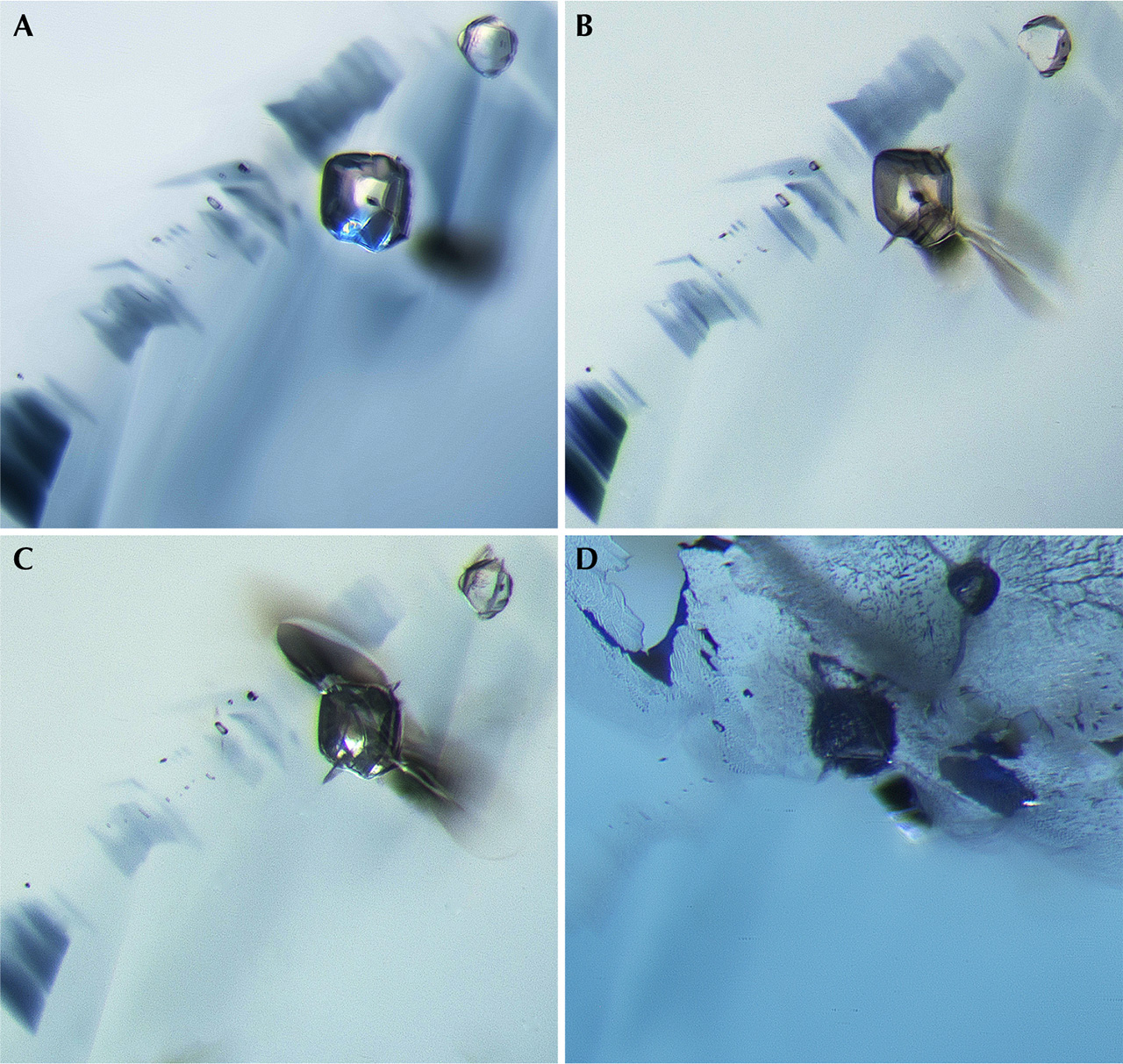

Figure 9. A: Before heating, sample 9 shows two transparent crystals next to a pattern of angular blue color zoning. B: With heating to 1000°C, the larger crystal shows heat damage, with a glassy fissure forming around it. Note how the background color has lightened. C: At 1100°C, the fissure has become larger, and a tiny fissure has begun to develop around the smaller crystal. D: At 1500°C, the inclusion scene is almost unrecognizable. Large fissures have developed around both crystals and begun to heal, creating melted-looking fingerprints. The blue color zones have lightened to a pale brown, but the overall bodycolor has become a stronger, even blue. Brightfield illumination with blue and white filters plus diffuse oblique fiber-optic light. Photomicrographs by E. Billie Hughes; field of view 1.7 mm.
In several samples, the included crystals changed in appearance after heat. The crystals in sample 10, for example, developed small bubbles inside (see figure 10). Several included crystals developed a “frosty” appearance where their surfaces became rough and lighter in color, recorded in figures 10 and 11.

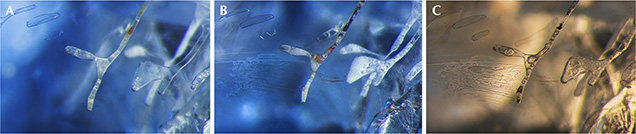

Figure 10. A: Before heating, sample 10 is filled with elongated negative crystals, some of which branch into “Y” shapes. Many of these are filled with orange stains, but most are removed after acid cleaning. B: After the first round of heat, to 800°C, some changes are already apparent. The orange staining has turned a darker brownish shade. Some of the negative crystals, like the one on the right, have started to display a “frosty” white appearance on the surface. In the background behind the negative crystals, we can see faint signs of fissures and fingerprints beginning to develop. C: When heated to 1000°C, the changes become more pronounced. Some of the tubes, like the one in the center, have developed immobile bubbles inside. The fissures from previous rounds of heating have also begun to heal and create clear fingerprints composed of small channels. Also note how the background color has changed from medium blue to near-colorless. Diffuse oblique fiber-optic illumination. Photomicrographs by E. Billie Hughes; field of view 1 mm.

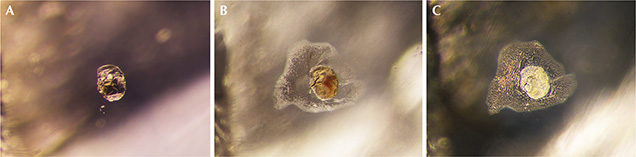

Figure 11. A: A small, flat crystal is pictured in sample 10 before heat treatment. B: A reflective fissure begins to appear around the crystal after the first heating to 800°C. By 1100°C (pictured), the fissure has begun to heal at the edges. C: By the last round of heating, at 1500°C, the fissure around this crystal has begun to heal into a fingerprint. The crystal itself has also changed and developed a frosty, whitish appearance. Darkfield illumination. Photomicrographs by E. Billie Hughes; field of view 1 mm.
Figures 6–11 show a selection of inclusion photos of the stones both before and after heating. We kept the lighting conditions as similar as possible at each step, but because the bodycolor of the stones was changing, there are significant differences in the overall color of some images. In some cases, a blue color-correcting filter was used to neutralize the yellow tint of our microscope light.
UV-Vis-NIR. Ultraviolet/visible/near-infrared (UV-Vis-NIR) spectroscopy was conducted with a Magilabs GemmoSphere UV-Vis-NIR spectrometer. We recorded UV-Vis-NIR spectra before heating and after each stage of heating. Before heating, 11 of the 12 stones showed spectra typical of metamorphic sapphire, with prominent absorption between 500 and 600 nm (figure 12A). Only sample 3 showed a spectrum that was not typical of metamorphic sapphire (figure 13). It displayed absorption between 500 and 600 nm as well as a prominent peak at 880 nm, which is often associated with magmatic sapphires (Hughes et al., 2017).
Figure 12. A: The UV-Vis-NIR spectrum of sample 7 before heat treatment. Note that the most prominent feature is the absorbance between 500 and 600 nm, as well as a small Fe-related peak around 450 nm. B: The UV-Vis-NIR spectrum of sample 7 after heating to 900°C. Note the development of a large peak at ~880 nm.
Figure 13. Sample 3 was the only one to display absorption from 500 to 600 nm as well as around 880 nm before heat treatment.
Eleven of the twelve stones also showed Fe-related peaks at 450 nm, ranging from weak to very strong. The only stone that did not initially display this peak was sample 1 (figure 14), which had both pink and blue zones. This stone showed transmission just below 700 nm in the red zone.
Figure 14. Sample 1 was the only one that did not display a peak at 450 nm.
After each round of heating, we ran the spectra again. With heating at 800°C, all of the spectra were similar to those obtained prior to heating.
For the next round, we heated the samples to 900°C. We were surprised to see two of the spectra change significantly. In samples 7 and 12, the peak between 550 and 600 nm became less prominent and a broad absorption band centered at 880 nm developed (figure 12B).
At first we suspected we had made an error, perhaps because we had focused on a slightly different area of the stones when running the spectra (see “Limitations of UV-Vis-NIR Results” below). We reran the spectra several times, with the same results. In the gemological literature, this shift has seldom been detailed. The earliest reference we found was with regard to heat-treated Montana sapphires, which also showed this shift after treatment (Emmett and Douthit, 1993). It was also reported in heated Madagascar sapphires in a master’s thesis (Worawitratanagul, 2005).
By the next round of heating, to 1000°C, this aberration became the trend. Samples 7 and 12 still displayed the peak around 880 nm, but five more stones also showed this shift (samples 2, 4, 5, 9, and 10). At 1100°C, the spectrum of sample 11 also displayed the shift, for a total of 8 out of 12.
Of the eight stones whose spectra changed to display this 880 nm peak, seven retained the peak after all subsequent rounds of heating. The only exception was sample 9, whose spectrum reverted to only showing absorption from 550 to 600 nm after heating at 1300°C. We are unsure of the cause. Further experimentation with samples aligned to the c-axis could be useful in exploring this further (again, see “Limitations of UV-Vis-NIR Results” below).
These significant spectral shifts showed a strong correlation with major changes in color after heat treatment. It has been suggested that there is a strong correlation between an 880 peak and a basalt-related origin. Given the fact that we have noted this peak in heated metamorphic sapphire, we would strongly caution against using the UV-Vis-NIR spectrum as the sole evidence of basaltic origin. As always, these spectra should be weighed with other factors.
Limitations of UV-Vis-NIR Results. We should note that the wafers were not oriented to the c-axis when they were polished, and spectra may have been taken from slightly different positions on the stone. This could affect the results.
However, the significant changes in a number of spectra (8 of the 12 stones) are strong evidence that this shift results from heat treatment, not just due to a different alignment of the stones while obtaining spectra. Future experiments with samples oriented for the c-axis and positioned identically would strengthen these results.
FTIR. Fourier-transform infrared (FTIR) spectroscopy was performed using a Bruker Tensor 27 spectrometer, with the samples placed on a Pike DRIFTS attachment and scanned 64 times at a resolution of 4 cm–1. Spectra were obtained before heating and after heating at each temperature, with the following results:
- In their unheated state and after heat treatment to 800°C and 900°C, none of the stones showed significant peaks.
- After heating to 1000°C, two of the samples started to show diagnostic peaks.
- Sample 2 showed very weak peaks at 3309 and 3232 cm–1. Once it was heated to 1100°C, these features became more prominent. This trend continued after heating to 1300°C, where in addition to the 3309 and 3232 cm–1 peaks, the 3186 cm–1 appeared in this series (figure 15). After heating to 1500°C, only the 3309 and 3232 cm–1 peaks were present. The presence of the 3309 peak by itself is not diagnostic evidence of artificial heat treatment in sapphire and ruby sourced from metamorphic rocks; however, the presence of a 3232 peak above the noise floor strongly suggests the stone has been artificially heated.
- Sample 8 displayed only a very weak 3309 cm–1 peak after heating to 1000°C and did not display diagnostic features after heating at any other temperatures.
- Once the stones were heated to 1100°C, two more stones started to show additional features.
- Sample 4 displayed weak peaks at 3309 and 3232 cm–1, which became more prominent after heating to 1300°C (figure 16). After heating to 1500°C, no diagnostic features were evident.
- Sample 6 also started displaying a very weak 3309 cm–1 peak at 1100°C, which was also present after heating at 1300°C and 1500°C.
- The remaining eight stones showed no diagnostic features after heating at all temperatures.
Figure 15. After heating to 1300°C, sample 2 developed a strong 3309 cm–1 series with peaks at 3309, 3232, and 3186 cm–1. In sapphires (and rubies) that have formed in metamorphic environments, the presence of the 3309 peak is not diagnostic; it is the appearance of the 3232 peak that provides strong evidence of artificial heat treatment.
Figure 16. A medium 3309 cm–1 peak developed in sample 4 after heating to 1300°C.
Overall, the results suggest that the appearance of the 3309 cm–1 series (with a 3232 cm–1 peak) can be indicative of heat treatment in low-Fe metamorphic corundum. However, the lack of these features does not necessarily mean that a stone has not been heated. It is important to note that in high-Fe sapphires from basalt-related origins, a weak to medium 3309 cm–1 series with the 3232 cm–1 peak can often be found naturally and is therefore not a reliable indication of heat treatment (Hughes et al., 2017).
Limitations of FTIR Results. As with the results of UV-Vis-NIR testing, the FTIR results may be limited by the fact that the stones were not oriented to the c-axis and the spectra were not taken in the exact same position.
Fluorescence Reactions. Examining the fluorescence reactions of the stones was a major area of focus for this project, with a particular emphasis on short-wave reactions. The value of examining short-wave UV fluorescence in the study of corundum has been recognized for decades (Crowningshield, 1966), and it has been connected to the detection of heat treatment.
Fluorescence was initially observed using an Ultraviolet Products UVLS-26 EL Series UV lamp using a six-watt bulb, with a long-wave light source at 365 nm and a short-wave light source at 254 nm. If a reaction was found, we also examined the sample with the Magilabs custom-designed deep-UV fluorescence system, consisting of a fluorescence microscope setup equipped with a high-intensity pulsed xenon flash lamp with an interference bandpass filter at 228 nm.
Short-wave fluorescence photomicrographs were taken with a Canon EOS 6D camera connected to a Wild M400 microscope and the Magilabs custom-designed deep-UV fluorescence system.
Long-Wave Fluorescence. Under long-wave UV, about half of the unheated stones were inert and showed no reaction. The other half showed mostly weak to medium zoned orange fluorescence. Heating did not produce any significant changes in the long-wave fluorescence reaction of most samples.
The one exception to this pattern was in sample 1, a stone with strong pink and blue color zoning. The pink zone (which turned orange after heat treatment) fluoresced a strong orange, and the blue zones fluoresced a medium to strong red. The stone did not show significant change in long-wave fluorescence after heating.
Short-Wave Fluorescence. Prior to heat treatment, all of the stones were inert under short-wave fluorescence. We initially checked for fluorescence in our standard UV light box. If we saw any sign of fluorescence, we photographed it with the Magilabs custom-designed deep-UV fluorescence system. It was not until the stones were heated to 1000°C that we started to see changes, where some stones began to display a weak chalky blue fluorescence (figures 17–19). This chalky appearance has been associated with heat treatment in sapphires.

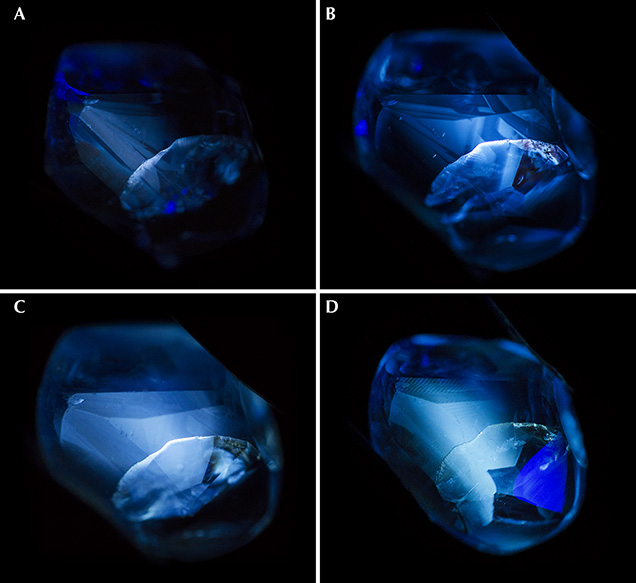

Figure 17. A: Once sample 6 was heated to 1000°C, we observed a weak zoned chalky fluorescence. The stronger whitish band is the fluorescence in a small fissure on one end of the stone, but an angular zoned chalky blue fluorescence can be seen in the body of the stone. B: After heating to 1100°C, the angular chalky fluorescence became more intense. C: By 1300°C the fluorescence reaction was even stronger, with the angular zoned areas barely visible as the stone took on a more chalky appearance overall. D: At 1500°C, the reaction was similar to the previous round, with an overall chalky blue appearance. A small triangular zone on one end, which was not apparent in previous rounds, may be due to the fact that we slightly repolished the stone to remove surface debris. Photos by E. Billie Hughes.

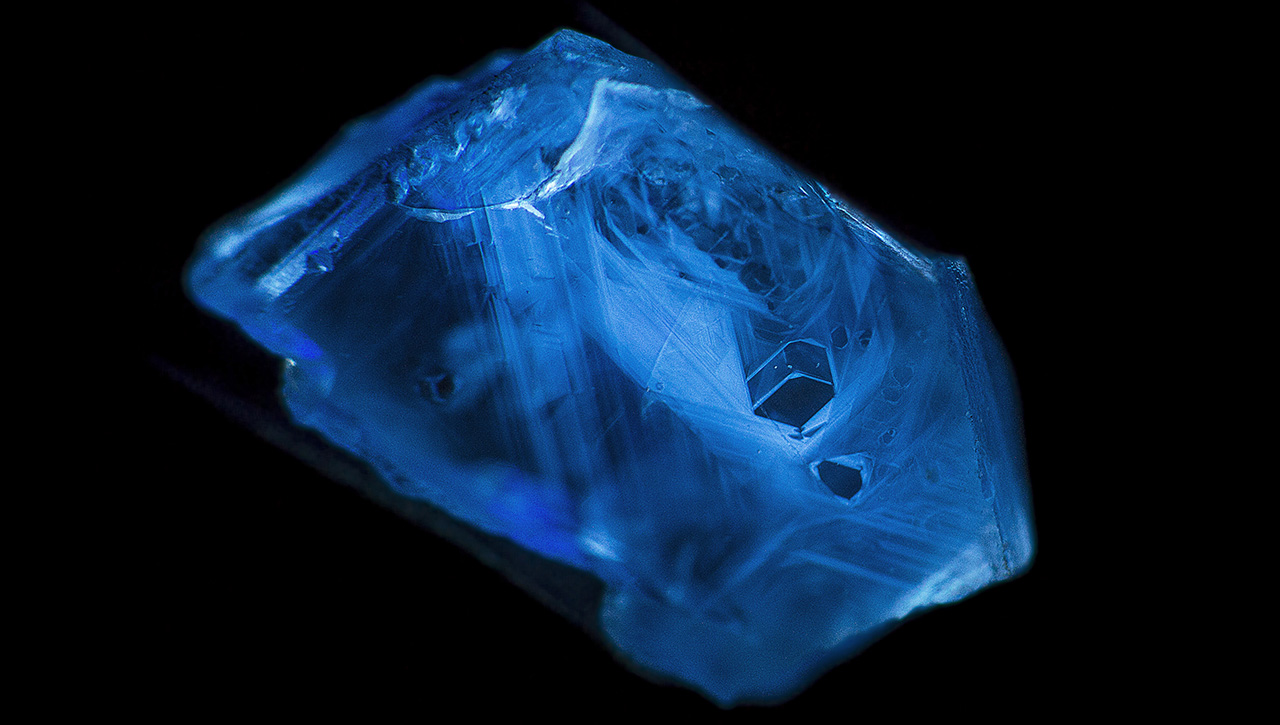

Figure 18. Sample 10 did not show any short-wave fluorescence reaction until it was heated to 1000°C. At this point it displayed a strong chalky blue reaction, with complex angular fluorescent zones. Photo by E. Billie Hughes.

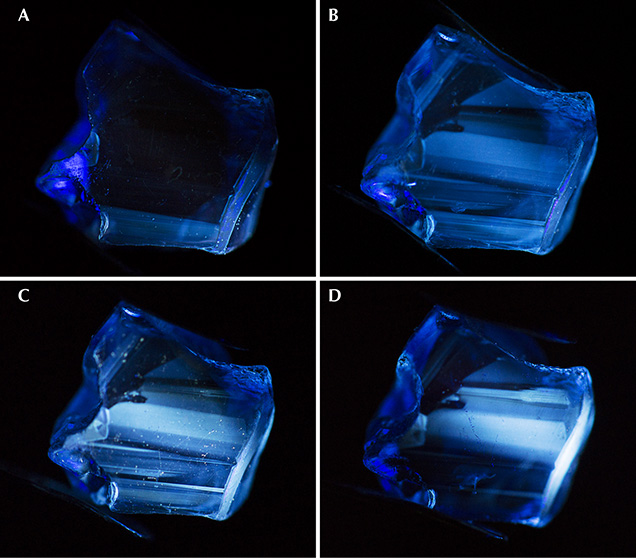

Figure 19. A: Sample 11 began to show a short-wave fluorescence reaction after heating to 1000°C. This was mainly limited to one side of the stone, where a chalky blue band can be seen. B: After heating to 1100°C, the chalky blue reaction became stronger and more widespread, with chalky blue bands across the stone. C: After heating to 1300°C, the reaction became even stronger, with a brighter, chalkier appearance. D: By the last round of heating at 1500°C, the fluorescence reaction still appears extremely strong and chalky, although the band at the bottom is less evident. This may be due to slight repolishing to remove surface debris. The overall appearance is still of a clear, strong chalky fluorescence reaction. Photos by E. Billie Hughes.
In natural, heated sapphires, this chalky fluorescence is associated with the presence of rutile. Almost all natural blue sapphires contain some exsolved rutile (TiO2). When these sapphires are heated, there is a slow dissolution of rutile, which creates Ti4+ ions and Ti-Al vacancies. These will fluoresce when illuminated in short-wave UV. The strongly chalky areas will follow the zoning patterns of the rutile, and the strongest fluorescence will be in areas with the lowest Fe and highest rutile concentrations (Hughes et al., 2017, pp. 154–155).
Once we started using the Magilabs fluorescence unit, we realized the reactions were much stronger and clearer than in our Ultraviolet Products UVLS-26 EL Series unit. Thus, after this round of heating at 1000°C, we started looking at all stones in the Magilabs system. We found that two of the stones appeared inert in the regular unit but showed weak chalky fluorescence in the Magilabs unit.
By the time we heated to 1300°C, all 12 stones were showing at least a weak zoned chalky blue fluorescence reaction. A few of these stones appeared inert in our regular UV light box. Again, when we checked each stone in our Magilabs system, we began to see reactions that were either extremely difficult or impossible to see in our regular fluorescence unit. It is possible that the fluorescence was apparent after heating below 1000°C (the temperature where we first noticed it) but that we did not see the reaction because our regular UV unit was not strong enough. In future experiments, we plan to conduct observations with the Magilabs unit after all stages of heating.
In fact, some stones that appeared inert even in this Magilabs unit showed extremely weak chalky fluorescence once photographed. It seems that our camera was able to capture reactions that are so weak as to be almost imperceptible to the human eye. This suggests that there is considerable information we may be missing when using the traditional UV light box. The development of better instruments to examine short-wave UV reactions would be a significant stride for gemology, and we believe this improvement could be of great use in determining heat treatment in corundum.
CONCLUSIONS
Heat treatment from lower to higher temperatures can have a significant impact on the color of metamorphic blue sapphires from Madagascar. In our study, temperatures between 800 and 1100°C in air lightened the blue color, while higher temperatures, which can dissolve rutile, created deeper, more saturated blues.
Detection of this treatment is possible by a combination of observing inclusion features and short-wave UV fluorescence, as well as infrared spectroscopy. We believe that the study of short-wave UV fluorescence shows great promise in determining heat treatment in sapphire. It would be beneficial to the gemological community to find more detailed and accurate ways to observe this reaction at stronger power and with magnification.
It is important to note that the authors found that for many of the stones, the UV-Vis-NIR spectra showed a shift from primarily having peaks between 550–600 nm before heating to having a strong peak at 880 nm after heating. The experiments suggest that this 880 nm peak, which has often been correlated with sapphires of basalt-related origin, can also occur in heated metamorphic sapphires. Therefore, this peak should always be taken into consideration with other features before drawing a conclusion.
Our study of these stones demonstrates that heated metamorphic Madagascar blue sapphire can often be separated from unheated material, even when heated to temperatures as low as 800°C.
