Discovery of Color-Change Chrome Grossular Garnets from Ethiopia

Garnets under daylight-equivalent (left) and incandescent light (right).
Figure 1. Left: Three rough garnets (left to right, stones 2, 3, and 4) and one faceted garnet photographed in an LED light source with 6000K color temperature (a daylight-equivalent light simulator). Right: The same stones photographed in an LED light source with 3100K color temperature (an incandescent light simulator). The 2.705 ct faceted stone measures 8.08 × 7.18 × 5.49 mm. Photos by Kevin Schumacher.

Ethiopia has become a significant producer of opal, sapphire, and emerald in recent years. In addition, reports of gem-quality green garnets have started to emerge (B. Williams et al., “Tsavorite reportedly from Ethiopia,” Journal of Gemmology, Vol. 35, No. 8, 2017, pp. 702–704).

Todd Wacks (Tucson Todd’s Gems, Tucson, Arizona, and Vista, California) recently submitted three rough and one faceted garnet (figure 1, stones 1, 2, 3, and 4) to GIA in Carlsbad for scientific examination. He purchased the garnets from Inna Gem, which reported that the garnet mine is located near the town of Wbi and the new Dubuluk emerald deposit (Spring 2017 GNI, pp. 114–116). The stones showed obvious color change from yellow-green under daylight-equivalent lighting to orange-brown under incandescent illumination. This is similar to the color-change behavior reported for some color-change garnets from Sri Lanka (Spring 2017 GNI, pp. 137–138).

Standard gemological testing revealed a refractive index (RI) of 1.740 on the faceted stone. Hydrostatic specific gravity (SG) of all garnets in this study ranged from 3.62 to 3.68. Fluorescence was inert to long-wave and short-wave UV light. Rotating the stones 360° between a pair of crossed polarizing filters revealed an anomalous double refraction. Using a handheld spectroscope, faint absorption bands at 480–490 and 570–590 nm were observed. Microscopic examination showed fingerprints composed of two-phase inclusions, iron-stained and cloudy fractures, long thin etch channels, unidentified transparent crystals, and zoned greenish brownish yellow areas. These properties are consistent with grossular (grossular-andradite) garnets (I. Adamo et al., “Tsavorite and other grossulars from Itrafo, Madagascar,” Fall 2012 G&G, pp. 178–187; M.L. Johnson et al., “Gem-quality grossular-andradite: A new garnet from Mali,” Fall 1995 G&G, pp. 152–166).

Laser ablation–inductively coupled plasma–mass spectrometry (LA-ICP-MS) analyses were performed to obtain the chemical composition of these garnets using a Thermo Fisher iCAP Qc ICP-MS coupled with an ESL NWR213 nm laser ablation unit. USGS glass standards GSD-1G and GSE-1G and NIST glass standard 610 were used as external standards. 29Si was used as an internal standard. The analyses were performed in the same region where spectroscopic data was collected for stones 3, 4 (Ethiopian garnets), 5 (non-Ethiopian tsavorite), and 6 (non-Ethiopian demantoid) (see supplementary table S1).

Calculated visible absorption spectra of four garnets.
Figure 2. The calculated visible absorption spectra (corrected for reflection loss) of garnets 3, 4, 5, and 6 with various path lengths. Transmission window A is centered at 545 nm. Transmission window B is between 620 and 650 nm; transmission window C is centered at 520 nm. In Ethiopian grossular stones 3 and 4, the absorption bands at 431 and 599 nm are caused by Cr3+. In stone 5 (non-Ethiopian tsavorite) the absorption bands at 428 and 611 nm are caused by V3+. In stone 6 (non-Ethiopian demantoid) the absorption bands at 431 and 627 nm are caused by Cr3+ (Adamo et al., 2009). The human eye is not color sensitive above 650 nm or below 420 nm wavelength (gray color zoning in the graph). The transmission in these ranges cannot contribute to the color seen. Please note that the y-axis units are in true absorbance and not absorbance coefficients.

The Ethiopian garnets are predominantly composed of 87.24–91.60% grossular, 6.03–8.19% andradite, 1.04–2.80% spessartine, 1.29–0.55% uvarovite, 0.71–0.82% pyrope, and 0.03–0.05% goldmanite (again, see stones 1–4 at the link provided above). The dominant chromophore is Cr3+ at about 0.19–0.43 wt.%, with an almost negligible contribution from V3+. This contrasts significantly with most tsavorite grossular garnets, whose color is dominantly derived from V3+ with a lesser contribution from Cr3+ (Adamo et al., 2012).

Vanadium and chromium concentration of grossular garnets, obtained by LA-ICP-MS.

The color panels of four garnets under CIE A (incandescent) and CIE D65 (daylight-equivalent) illumination.
Figure 3. The color panels of four garnets (stones 3, 4, 5, and 6) under CIE A (incandescent) and CIE D65 (daylight-equivalent) illumination are quantitatively reproduced. The garnets’ colors are shown at different light path lengths (defined by stone thickness). For each sample, the top and bottom rows represent the color under incandescent light (A) and daylight-equivalent light (D65), respectively. For calculation methods, please see Sun et al. (2017).

UV-Vis-NIR spectra (figure 2) were collected and corrected for reflection loss. These spectra were then used to quantitatively calculate the color of the garnets at a wide range of path lengths and under different lighting conditions. In addition to two of the Ethiopian grossular garnets, UV-Vis spectra were also collected on the non-Ethiopian tsavorite (stone 5) and the non-Ethiopian demantoid (stone 6) for comparison. The chemistry of stones 5 and 6 is also reported; see the supplementary table S1.

Chemical composition of four color-change grossular garnets (stones 1–4), one tsavorite (stone 5), and one demantoid (stone 6) by LA-ICP-MS.

The calculated color panels of stones 3–6 under daylight-equivalent lighting (CIE D65 illumination) and incandescent light (CIE A illumination) are shown in figure 3, which shows the possible colors these four garnets would exhibit with different path lengths (defined by stone thickness) and the approximate corresponding carat weight of a well-proportioned round brilliant (for details of this calculation, see Z. Sun et al., “Vanadium- and chromium-bearing pink pyrope garnet: Characterization and quantitative colorimetric analysis,” Winter 2015 G&G, pp. 348–369). Ethiopian grossular stone 4 showed a stronger color change and a higher chromium component than Ethiopian grossular stone 3. Stone 6 showed a more yellowish green than stone 5 due to the demantoid’s higher Fe component, which absorbs more blue light than in tsavorite (again, see figure 2).

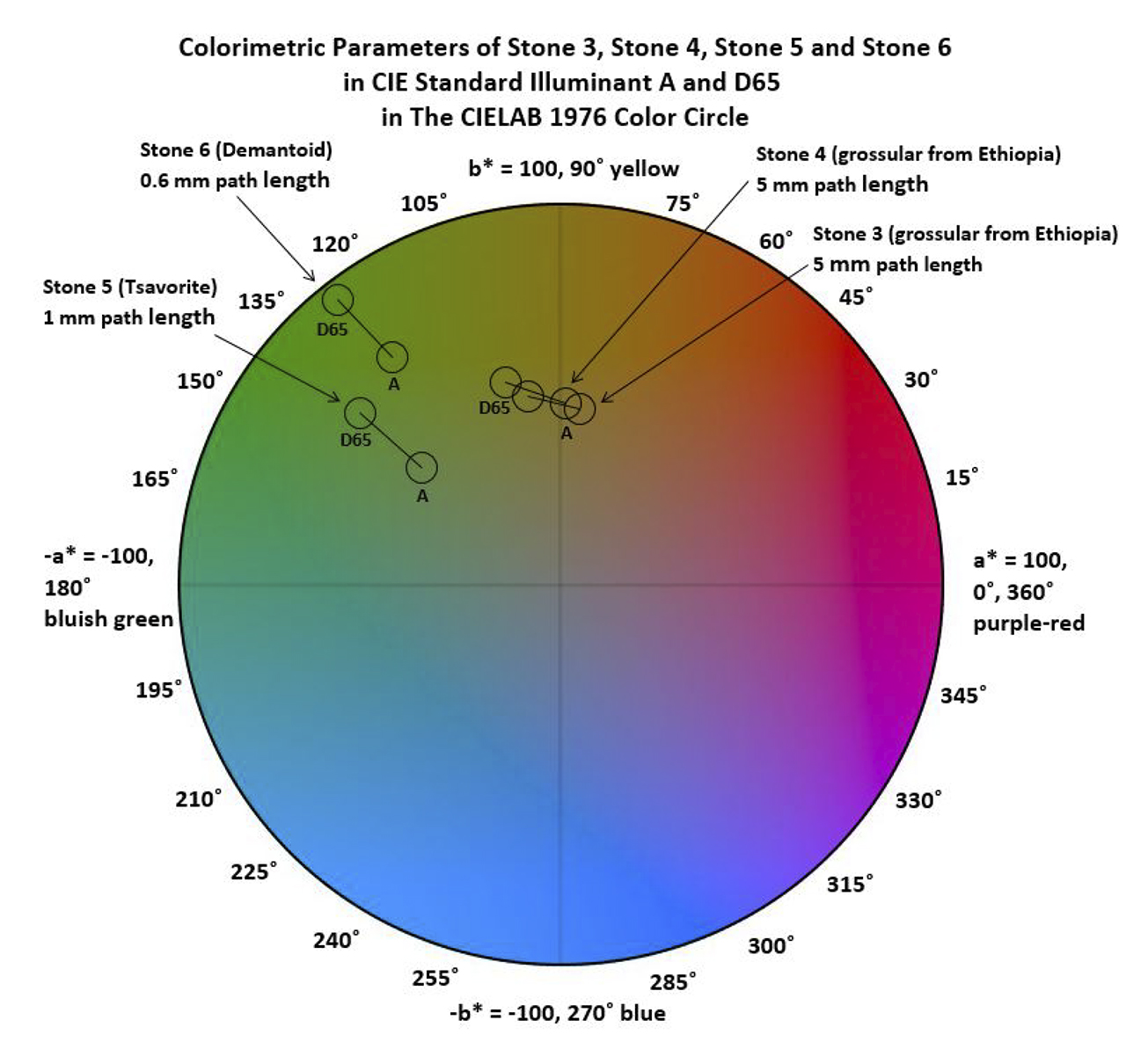

Plot of color coordinates in CIE 1976 color circle.
Figure 4. In the CIELAB 1976 color circle, the color of stone 4 changes from yellow-green under CIE D65 illumination to yellow-orange under CIE A illumination, with a hue angle difference of 16.68˚ and a chroma difference of 7.40. The color of stone 3 changes from yellow-green under CIE D65 illumination to yellow-orange under CIE A illumination, with a hue angle difference of 15.94˚ and a chroma difference of 3.74. Stone 5 (tsavorite) has no color change in D65 and A visually. The hue angle difference is 0.48˚, and the chroma difference is 21.73. Stone 6 (demantoid) has no color change in D65 and A visually. The hue angle difference is 1.63˚, and the chroma difference is 20.54.

One way to judge the quality of a color-change stone is to plot the color panel pair in the CIE 1976 color circle. Good color-change pairings show a large hue angle difference, a small chroma difference, and large chroma values (Z. Sun et al., “How to facet gem-quality chrysoberyl: Clues from the relationship between color and pleochroism, with spectroscopic analysis and colorimetric parameters,” American Mineralogist, Vol. 102, No. 8, 2017, pp. 1747–1758). The color coordinates of the four stones in daylight-equivalent (D65) and incandescent (A) illumination were plotted in the CIE 1976 color circle (figure 4). Ethiopian grossular stone 4 had the largest hue angle difference among the four stones and a relatively small chroma difference. The non-Ethiopian tsavorite and demantoid both had a very small hue angle difference that was close to zero but with large chroma difference.

One interesting observation is that the Cr3+ absorption band shifted significantly from 627 in demantoid (stone 6) to 599 in the Ethiopian grossulars (stones 3 and 4; all stone samples contained little V). This shift opens a transmission window B in the red region shown in figure 2. To our knowledge, color-change behavior has not been reported in tsavorite or demantoid. This is because the absorption bands of V3+ at the 610 region in tsavorites (green grossular) or of Cr3+ at the 627 nm region are dominated by Cr3+ in demantoids and prevent the transmission of red light in these stones. In other words, there is no transmission window in the red for tsavorite or demantoid. However, these Ethiopian grossulars have little V3+, and the Cr3+ absorption is shifted away from the red region, which allows for significant transmission of red light through these stones. This creates a transmission window that produces significantly different color for the Ethiopian grossular in incandescent illumination versus daylight. To the authors’ knowledge this was the first group of color-change gem-quality chrome grossular garnet reported.

Ziyin Sun, Heidi Breitzmann, and Jonathan Muyal are staff gemologists; Aaron C. Palke is a senior research scientist; Nathan D. Renfro is manager of identification; and Dylan Hand is an analytics technician at GIA in Carlsbad, California.
