Inclusion-Rich Black Topaz from the Thomas Mountains, Utah

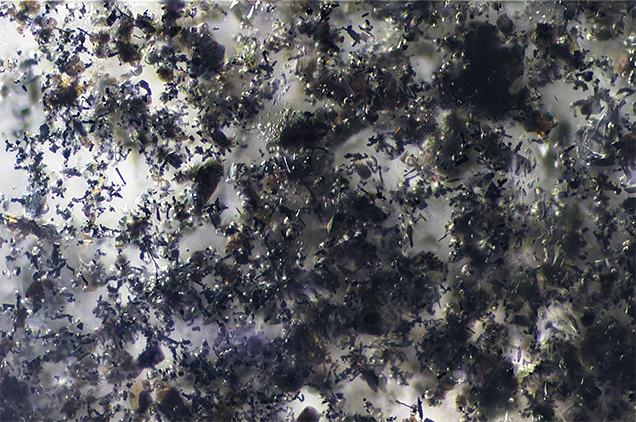

Small dark mineral inclusions in topaz.
Figure 1. The black appearance of a topaz was due to these small dark mineral inclusions. Photomicrograph by Jonathan Muyal; field of view 1.44 mm.

Topaz is an important gemstone that occurs in various colors. The authors had the opportunity to examine some unusual black topaz crystals and crystal fragments whose appearance was the result of numerous small dark mineral inclusions (figures 1 and 2). The topaz originated from an undisclosed locality in the Thomas Mountains in Juab County, Utah. They were provided by Shaun Rasmussen and Krisann Morrill (SK Star Claims, Provo, Utah), who discovered the occurrence. Careful microscopic examination revealed the presence of several inclusion minerals (figure 3, top). Among these were thin, translucent brownish plates of annite/phlogopite mica; transparent colorless, spherical crystals of fluorite; and opaque black octahedral crystals of magnetite. These minerals, which are well-known inclusions in topaz, were confirmed by Raman microspectrometry.

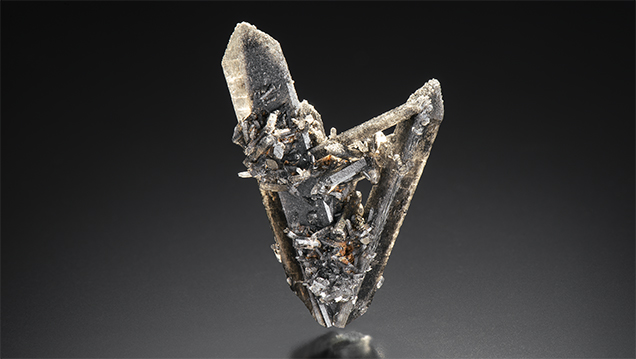

Black topaz crystal from Thomas Mountains, Utah.
Figure 2. A black topaz crystal specimen from the Thomas Mountains in Utah (24.8 × 17.92 × 12.29 mm). Photo by Kevin Schumacher.

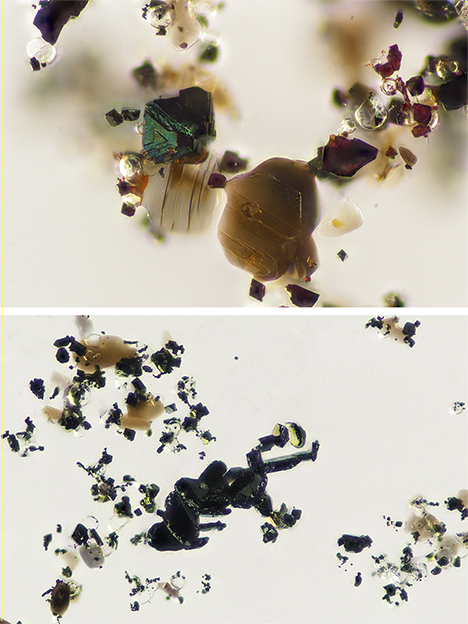

Magnetite, fluorite, and annite/phlogopite inclusions (top) and wolframoixiolite, fluorite, and mica inclusions (bottom).
Figure 3. Top: Inclusions seen in this photomicrograph include black magnetite, colorless fluorite, and brown annite/phlogopite. Bottom: Clusters of tabular wolframoixiolite crystals along with fluorite and mica inclusions. Photomicrographs by Jonathan Muyal; fields of view 0.288 mm (top) and 0.36 mm (bottom).

The most abundant inclusions—and apparently the principal cause of the black appearance—were numerous opaque flattened or stubby crystals of wolframoixiolite (figure 3, bottom), a rare complex oxide mineral with the ideal formula (Nb,W,Ta,Fe,Mn,Nb)2O4 (N. Ray, “Mineralogy and geochemistry of unusual localized W-Nb included black topaz from the Thomas Mountain Range, UT,” unpublished and undated manuscript, provided by SK Star Claims to the authors). Quantitative chemical analysis by LA-ICP-MS revealed a composition of 1.66 wt.% CaO, 2.28 wt.% TiO2, 5.52 wt.% MnO, 19.93 wt.% Fe2O3, 1.94 wt.% ZrO2, 24.66 wt.% Nb2O5, 1.17 wt.% MoO3, 1.17 wt.% Ta2O5, 40.15 wt.% WO3, and 1.53 wt.% other elements. This gave a calculated chemical formula of (Ca0.074, Ti0.071, Mn0.193, Fe3+0.620, Zr0.039, Nb0.461, Mo0.020, Ta0.013, W0.430, others0.026)1.948O4, which is consistent with the chemistry of this uncommon mineral.

The presence of both magnetite and wolframoixiolite inclusions in the topaz resulted in a slight magnetic behavior. The corroded and sometimes altered appearance of both dark inclusion phases suggests that they represent protogenetic inclusions that formed during an earlier stage of mineral crystallization in the growth environment and were subsequently incorporated within the topaz. In spite of their abundance, these different inclusion minerals did not create any optical phenomena.

We thank those who provided these samples, which represent the first black-appearing topaz we have examined.

Jonathan Muyal is a staff gemologist, Ziyin Sun is a research associate, and James Shigley is distinguished research fellow, at GIA in Carlsbad, California.
