Inclusion and Trace Element Characteristics of Emeralds from Swat Valley, Pakistan
Swat Valley has become an important source of emeralds, including recently discovered trapiche-type crystals. In this study, emerald samples from Swat were examined by standard gemological testing, UV-Vis-NIR, FTIR, Raman analysis, EDXRF, and LA-ICP-MS. The study found three-phase hexagonal inclusions consisting of water, gaseous carbon dioxide and nitrogen, and a magnesite crystal. The gaseous mixture in two-phase inclusions is characteristic in both trapiche-type (CO2 + N2) and non-trapiche samples (CO2 + N2 + CH4). Mineral inclusions of hematite, magnetite, rutile, graphite, and siderite are reported for the first time. Regular non-trapiche-type Swat emeralds contain high chromium (avg. 7471 ppmw), alkali metal (avg. 21040 ppmw), magnesium (avg. 34263 ppmw), and iron (avg. 9265 ppmw), as well as scandium (avg. 633 ppmw). Infrared spectra show that the absorption of type II H2O is stronger than that of type I H2O. Logarithm plots of trace elements appear to be diagnostic. Based on Raman spectroscopy, the trapiche-type emeralds’ colorless core, light green hexagonal growth zone area, and green rim are emerald, while the six black arms are a mixture of hematite and graphite.
Pakistan’s production of emeralds has been increasing in recent years, and reserves are estimated at almost 70 million carats (Jamal-ud-Din, 2014; Makki and Ali, 2019). Swat Valley is known for small stones with saturated color (figure 1). Mineralogical curiosities include three-phase fluid inclusions (Gübelin, 1982) and newly discovered trapiche-type emeralds (Khan, 2018). Photomicrographs of three-phase inclusions in Swat emeralds are provided for the first time in this study.
The history and geology of the Swat deposit were comprehensively reported by Arif et al. (2011) and Giuliani et al. (2019) and are summarized here. However, a detailed study of the inclusions and trace elements of Swat emeralds has not been published despite analytical and geological advances (Bowersox and Anwar, 1989; Gao et al., 2019).
Therefore, we present results from a detailed study of gemological properties, inclusions, spectroscopy, and chemical composition to characterize the emeralds from Swat Valley. Our findings provide insights that can be used for understanding the genesis of the emeralds in this deposit while shedding light on the geographic origin determination of emerald.
HISTORY AND GEOLOGY
Pakistan’s emeralds have been found in four deposits, including Swat Valley in Swat District, Gandao in Mohmand Agency, Barang in Bajaur Agency, and Khaltaro in Gilgit-Baltistan (Khan, 2018). The Swat deposit is the largest of the four. The emerald mining area of Swat Valley is in northern Khyber Pakhtunkhwa and enclosed by the northwestern end of the Himalayan mountain range. To date, there are five mines in Swat Valley: Shamozai, Mingora, Gujar Killi, Charbagh, and Makhad (figure 2).

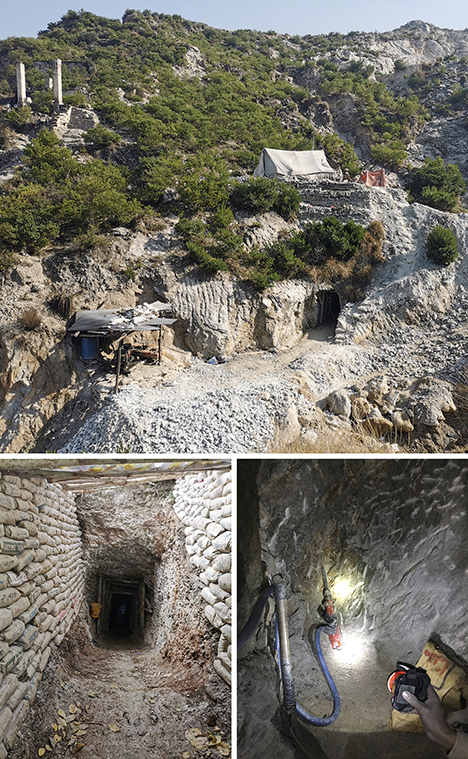

Mingora, Pakistan’s earliest emerald mine, was discovered in 1958 (Khan, 2018). Initially, the Mingora, Gujar Killi, Charbagh, and Makhad mines in Swat Valley (figure 3) were explored, mined, and regulated by a state-owned company, Gemstone Corporation of Pakistan (GEMCP). From the early 1970s to the present, these four mines and the Shamozai mine have been taken over by different private companies. In 1981, Swat emeralds made their first appearance in the world market at the Tucson Gem and Mineral Show (Kazmi et al., 1986). Gübelin (1982) first described the gemology of the Swat emeralds and their commercial value. At present, the Barang deposit and the Gujar Killi and Mingora mines in the Swat Valley deposit are the main producers of Pakistani emeralds.

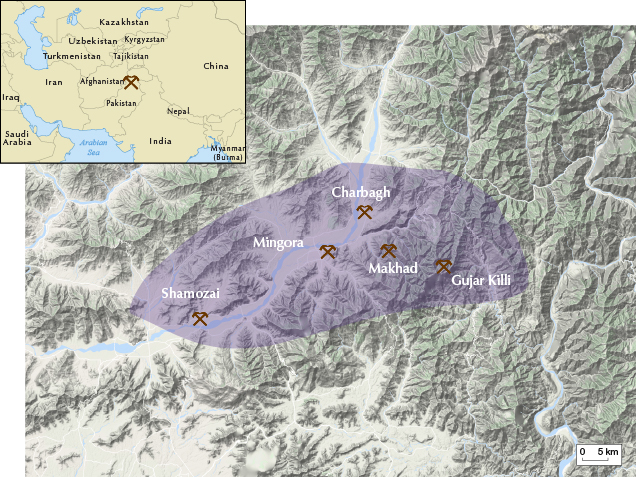

The Swat Valley deposit occurs in the Indus suture zone mélange (Arif et al., 2011; Rehman et al., 2011). The Indus suture zone, extending eastward to the Yarlung Zangbo suture zone in Tibet, represents fragments of the Neo-Tethyan upper mantle and the oceanic crust, which were emplaced on the continental margin and separate the Kohistan Arc sequence and the Eurasian plate to the north from the Indo-Pakistan plate to the south (Xu et al., 2015). In the Kohistan region, the Indus suture zone comprises Shangla blueschist mélange, the Charbagh greenschist mélange, and the Mingora ophiolitic mélange (Arif et al., 2011). The ophiolitic rocks occur as lens-shaped bodies of various sizes distributed along the Main Mantle Thrust and are well exposed in the Barkotkai-Lilaunai area, the Gujar Killi village, the Spin Obo-Kuh area, and the town of Mingora.
Emerald deposits in Swat Valley are exposed in carbonate-magnesite-talc-altered ultramaﬁc rocks, which also host high-Cr magnesian tourmaline (Giuliani et al., 2019). These emeralds formed during the Cenozoic era (23 Ma) (Dilles et al., 1994) and exist in magnesite-rich rocks (magnesite ± talc ± quartz ± dolomite), as part of the Indus suture zone mélange, distributed mostly along contacts of serpentinized ultramafic rocks with carbonate ± graphite-bearing metasedimentary rocks (Arif et al., 2011). Additionally, Groat et al. (2008) suggested that carbonate-altered ultramafic rocks hosting high-Cr magnesian tourmaline may be indicator minerals for emerald exploration.

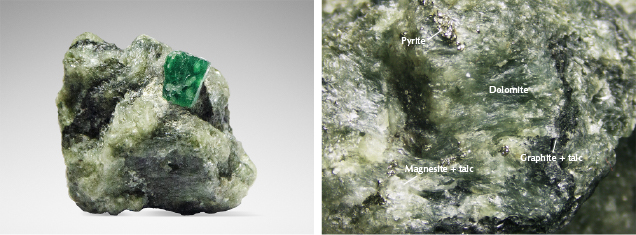

Figure 4 shows an emerald crystal (about 7 × 7 × 8 mm) in matrix from the Mingora mine in the Swat deposit. The matrix is composed mainly of light green dolomite, white magnesite + talc, grayish black graphite + talc, and pale brass-yellow pyrite, suggesting that this Swat emerald occurs in contact with serpentinized ultramafic rocks.
Chromium originates from the dissolution of chromite crystals in the serpentinites, and beryllium and boron from a leucogranite that may be hidden at depth (Lawrence et al., 1989; Arif et al., 1996, 2011). However, the source of vanadium remains uncertain.

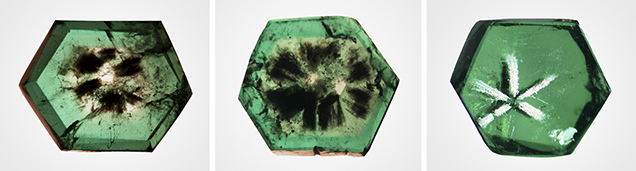

Trapiche-type emeralds, containing a green rim, light green areas, six magnetite arms extending perpendicular to the outer crystal faces, and a colorless core (Gao et al., 2019), were found in the Fizzaghat mine near Mingora (Khan, 2018). However, the chemical composition and spectroscopy were not studied further. For more on trapiche-type emeralds from Swat Valley, see Schmetzer (2020), p. 438 of this issue.
By interviewing mine owners, we gained mine-to-market information on Swat emerald. The emeralds are mined by traditional tunneling techniques. There are 30 active tunnels in the Mingora mine at about 1400 m elevation. Most have electricity but no ventilation. These tunnels were dug in a horizontal or slightly downward direction and were reported to be tens of meters to more than one kilometer long (figure 5, top and bottom left). The miners collect the emeralds using hydraulic jackhammers and handpicks along the white quartz vein (figure 5, bottom right). Mild winters, even in the snow, allow for continual mining though production may be reduced.
Emerald trading in Pakistan is traditional, without the use of the internet. Most transactions consist of local brokers buying rough stones from the mine owners, but there are also some foreign buyers. Some Swat emeralds are sold to the Indian and Bangkok markets, while other top-quality emeralds are sold to the European and Middle Eastern markets. Swat emerald rough can range in price from a few dollars to thousands of dollars per carat.
In the international market, Swat emeralds have been favored by many jewelry and luxury watch brands. However, Swat emeralds have only become widely known in the Chinese market in recent years and Swat is still considered a niche origin. More and more Chinese merchants go to Swat, Peshawar, and Islamabad in Pakistan to buy rough stones from local brokers for processing in China.
MATERIALS AND METHODS

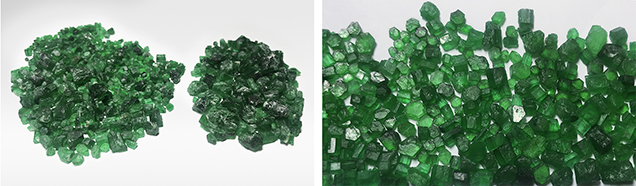

A total of 37 regular emeralds and 16 trapiche-type emeralds from Swat Valley, ranging from 0.06 to 2.88 ct, were analyzed for the study: 26 were double-sided wafers or rough crystals with polished windows; 16 were hexagonal trapiche-type crystals fashioned as double-sided wafers (figure 6); and 11 were unfinished rough crystals. The “regular” or “non-trapiche-type” samples were selected from more than 700 rough emeralds weighing more than 550 ct (figure 7), obtained from a gem merchant in Swat Valley. The trapiche-type samples, ranging from 0.25 to 0.85 ct with a size of 4 to 5 mm, were provided by Miro Fei-Yeung Ng. The analytical results of regular Swat emeralds and trapiche-type emeralds are presented separately.
Standard gemological properties of all the samples were determined with a refractometer, a Chelsea filter, long-wave (365 nm) and short-wave (254 nm) UV lamps, and an apparatus for hydrostatic specific gravity testing.
Internal features were observed with a binocular gemological microscope and an Olympus polarizing microscope objective using darkfield, brightfield, and fiber-optic illumination. Photomicrographs were captured with an Olympus DP2-TWAIN system at 10× to 400× magnification.
UV-Vis-NIR spectra were recorded on a QSPEC GEM-3000 spectrophotometer in the range of 200–950 nm with a 0.5 nm spectral resolution and 180–200 ms integral time. When possible, polarized spectra of oriented samples were collected for obtaining ordinary ray (o-ray) and extraordinary ray (e-ray) absorption spectra.
Infrared spectroscopy was performed by a Bruker Tensor 27 Fourier-transform infrared spectrometer (FTIR) in transmission mode and resolution set at 4 cm–1. The scanning ranges were 7200–2000 cm–1.
Inclusions were identified using a Horiba LabRAM HR-Evolution Raman spectrometer with an Ar-ion laser operating at 532 nm excitation, between 4000 and 100 cm–1, and accumulating up to two scans.
The elemental concentrations of trapiche-type emeralds were determined by the energy-dispersive X-ray fluorescence (EDXRF) technique using a Shimadzu EDX-7000 (15–50 kV, 1000 µA, 0–40 acquisitions, atmospheric conditions, and 1 mm scanning cores).
Trace element chemistry was performed using a Thermo X-Series ICP-MS fitted with a 343 nm femto-second laser ablation system (Applied Spectra J100), at the National Research Center for Geoanalysis, Chinese Academy of Geological Sciences (CAGS), Beijing. We used a laser repetition rate of 8 Hz at 8 J/cm2 and spot diameters of ~20 μm. A baffled smoothing device was used in front of the ICP-MS to reduce fluctuation effects induced by laser-ablation pulses and improve the quality of measurement data (Li et al., 2018). Each analysis consisted of ~10 seconds of background acquisition of gas blank measurement followed by 20 seconds of data acquisition from the sample. NIST SRM 610 and NIST SRM 612 were used as calibration reference materials for every 10 analyses to correct the time-dependent drift of sensitivity and mass discrimination. Data reduction was carried out with ICPMS Data Cal 10.8 software and specific analytical procedures and calibration methods (see Liu et al., 2008).
Gemological Properties. The gemological properties of regular emeralds from Swat Valley are summarized in table 1 and discussed in detail below.

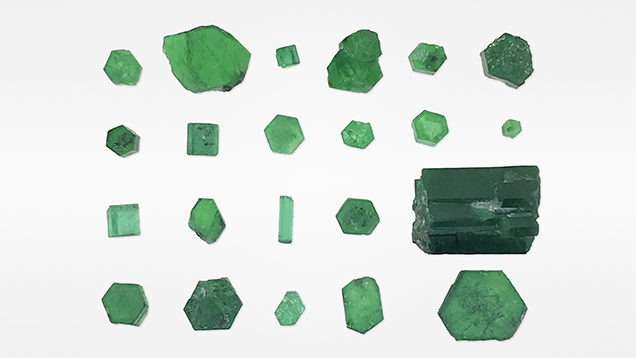

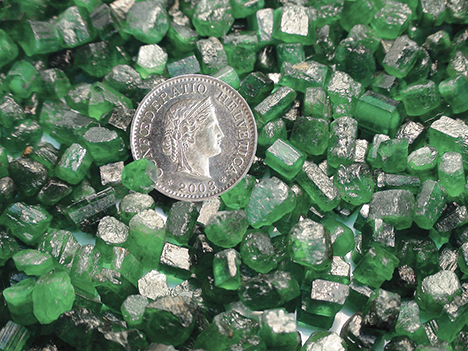

The rough emeralds from Swat Valley were typically small (<1.00 ct), but some weighed over 15 ct. The rough appeared as prisms, slabs, or fragments. Well-formed crystals typically showed short hexagonal prisms or slabs (figure 8). The majority ranged from 3 to 15 mm, but some were a few centimeters long. Larger crystals appeared to be translucent to opaque, whereas smaller crystals (< 4 mm) were transparent. Polished regular emeralds typically showed a dark slightly bluish green color, and others were medium to light green. The color was evenly distributed, while moderate hexagonal color zones or cores were observed in the flat terminations.

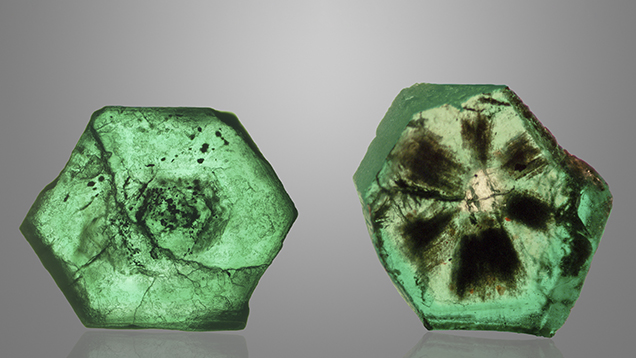

Similarly, trapiche-type emeralds ranging from 0.25 ct to 0.85 ct showed an intense to vivid green color in our study. There were four parts from the core to rim: a colorless core, six arms, a light green hexagonal growth zone area, and a green rim, while some had two colorless hexagonal cores (figure 9). In one sample, a colorless core was divided into two parts, indicating that this trapiche-type emerald went through different growth periods (figure 10). The colorless core formed as a completely hexagonal crystal before the green rims and black arms formed.
The regular emeralds from Swat Valley had a refractive index of 1.580–1.600, with birefringence between 0.006 and 0.011. Meanwhile, the trapiche-type emeralds had a refractive index of 1.589–1.601, with birefringence between 0.009 and 0.011. Specific gravity varied from 2.70 to 2.82, including the trapiche-type emerald values of 2.74–2.77.
Pleochroism was strong to medium yellowish green or green (o-ray) and bluish green (e-ray). The regular emeralds were typically inert to long- and short-wave UV radiation, but some had faint yellowish green fluorescence under long-wave radiation. Through the Chelsea filter, the more saturated samples appeared pink to red, while the less saturated samples showed no response. The visible spectrum of most emeralds from the spectroscope had distinct lines at ~680 nm, partial absorption between 550 and 630 nm, and complete absorption in the violet range (<460 nm). Small or light green emeralds showed a weaker spectrum, with two clear lines at about 650 and 680 nm, and a weak band below 460 nm.

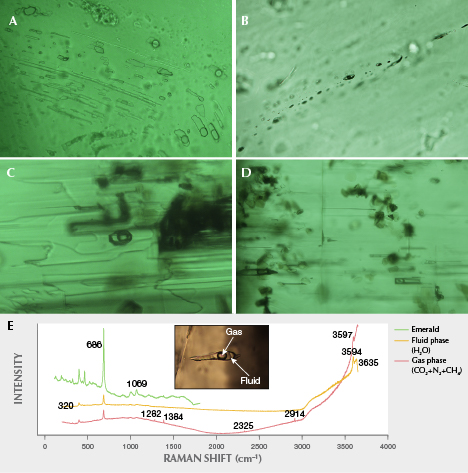

Microscopic Characteristics. The most common inclusions in the regular Swat emeralds were partially healed fissures with two-phase inclusions. Two-phase inclusions were typically elongated, necked-down, or of irregular shape (figure 11, A and B) and contained a gas bubble (CO2 + N2 + CH4, identified by Raman). At room temperature, the gaseous bubbles in the multi-phase fluid inclusions appeared to account for one-third to one-half of the volume of the multi-phase inclusion; sometimes they were even larger than the present irregular mineral inclusions. Unlike pseudo-secondary fluid inclusions commonly found in healed fissures, two-phase primary inclusions were rarely observed. The primary two-phase inclusions occurred as isolated negative crystals with an approximate hexagonal profile and high relief (figure 11C). Two-phase primary inclusions oriented parallel to the c-axis were commonly seen in thin emeralds with medium green color (figure 11D). Hexagonal three-phase inclusions were rare in the regular emeralds (figure 12). They contained a gas bubble and a crystal in an aqueous solution, but the composition could not be identified by Raman analysis.

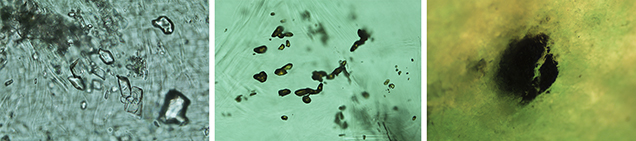

Solid inclusions were common in the regular Swat emeralds. Clusters of magnesite grains occurred in most of the emeralds. Rounded crystals of dolomite, quartz, and fluorite (figure 13, left) were found in some samples. Crystals of siderite and talc were generally found to be slightly rounded. Dark minerals included platelets of muscovite (figure 11D) and light to deep brown rutile (figure 13, center). Black magnetite and carbon inclusions were also visible on emerald surfaces and ridgelines (figure 13, right).

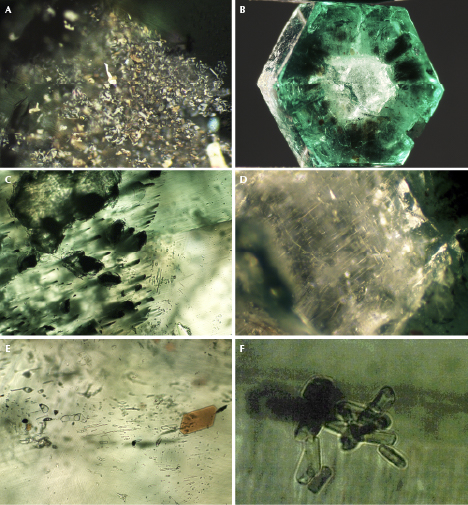

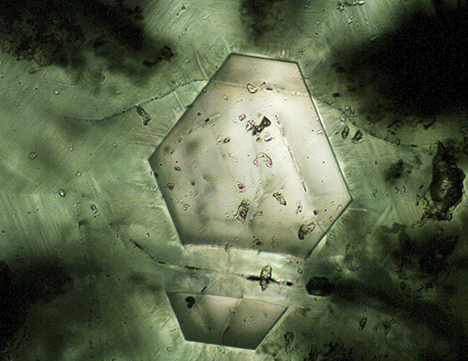

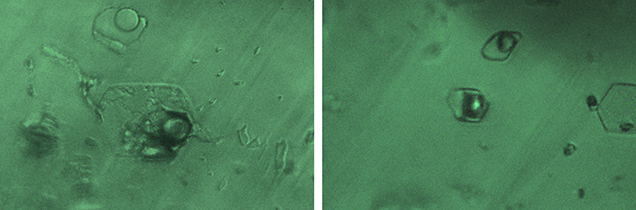

Trapiche-type emeralds from Swat Valley contained abundant two- and three-phase inclusions and solid inclusions. Three-phase inclusions were more common in the trapiche-type emeralds than in the regular Swat emeralds. In one sample, the solid was identified by Raman analysis as magnesite, indicating that multi-phase inclusions had captured surrounding minerals (figure 14). Gas mixtures of CO2 + N2 in two- and three-phase inclusions in trapiche-type emeralds (identified by Raman analysis) were different from those in regular Swat emeralds.
The structural components and solid inclusions of the trapiche-type emeralds were identified by Raman analysis. The colorless core, light green area, and green rim were emerald. Meanwhile, the six black arms were a mixture of hematite and graphite. Hematite showed a skeleton-like pattern, with metallic luster and was opaque under reflected light (figure 15A). Trapiche-type emeralds containing only a colorless core and a green rim and no light green areas were observed (figure 15B). A series of black graphite needles were along the fracture direction (figure 15C), and colorless needles intersected vertically with short tubular multi-phase fluid inclusions in the colorless core (figure 15D). Brown minerals of hexagonal and triangular shape were identified as hematite (figure 15E). Irregular or triangular plates of brown rutile and colorless crystal inclusions (figure 15F) were observed in the trapiche-type emeralds.
Spectroscopy. UV-Vis-NIR. A representative UV-Vis-NIR e-ray spectrum of the regular Swat emeralds is shown in figure 16 (blue line). There are four characteristic absorption bands: wide bands at 425 and 600–680 nm, a strong band at 850 nm, and a narrow band at 370 nm. Compared to Wood and Nassau (1968) and Schmetzer et al. (1974), the most prominent features in this group were the Cr3+ bands at 425, 610, 637, 660, and 681 nm. In addition, the narrow band at around 370 nm indicated the presence of Fe3+, and a strong Fe2+ band at 850 nm was recorded. But in some samples, a weak Fe2+ band was present at 830 nm.
As figure 16 (red line) shows, the e-ray spectrum of Swat trapiche-type emerald is different from that of regular emeralds. A significant Fe3+ absorption band was observed at 370 nm. The difference in Fe peaks may be attributed to the Fe-rich metallogenic fluid of trapiche-type emeralds. Moreover, significant Cr3+ bands at about 430, 610, 635, and 681 nm and the Fe2+ band at 850 nm were similar to those in regular emeralds.
UV-Vis-NIR spectroscopy shows differences between trapiche-type and regular emeralds. The chemistry in figure 18 agrees well with UV-Vis-NIR spectra. The concentrations of Fe in trapiche-type emeralds (17801 ppmw) are over four times as much as those in regular Swat emeralds (3825 ppmw).
Infrared. Figure 17 (left) shows typical FTIR spectra (e-ray) in the range of 7200–2000 cm–1. There is absorption of H2O in the channels of the emerald structure. The peaks at 7095 and 5267 cm–1 of type II H2O are sharp and strong, while the peak at 6843 cm–1 of type I is sharp but weak. According to Saeseaw et al. (2014), these three characteristic peaks of the Swat emeralds correspond to the vibration of type I and type II H2O molecules. The significant peak at 2356 cm–1 corresponds to CO2, which was present in all the samples.
The infrared spectroscopy in the 3200–2500 cm–1 range is helpful to identify possible fillers used for clarity enhancement. None of the green fillers were seen in any samples, but some of the stones containing a near-colorless filler showed infrared spectra (figure 17, right) typical of cedarwood oil and Araldite 6010, as indicated by absorptions at 3047, 3014, 2962, 2924, and 2869 cm–1 (Johnson et al., 1999).
Main and Trace Element Analysis. Eleven fabricated regular emerald samples were analyzed using LA-ICP-MS (table 2) and sixteen trapiche-type samples were measured by EDXRF (table 3).
Regular Swat emeralds tended to have high concentrations of Li, Na, Rb, Cs, Mg, and Fe, as well as Sc. Total alkali ion concentrations ranged from 16850 to 24475 ppmw (avg. 21040 ppmw); Mg contents ranged from 15149 to 226396 ppmw (avg. 34263 ppmw), while Fe ranged from 2533 to 59538 ppmw (avg. 9265 ppmw). Sc ranged from 254 to 1408 ppmw (avg. 633 ppmw). The concentrations of Cr (459–23041 ppmw, avg. 7471 ppmw) were greater than V (297–802 ppmw, avg. 565 ppmw), and the Cr/V ratio ranged from 0.8 to 42.
The results of EDXRF from the trapiche-type emeralds showed high contents of Fe (avg. 17801 ppmw), Cr (avg. 5795 ppmw), and Sc (avg. 2367 ppmw). Figure 18 indicated the low-to-high content trend of Fe (14968–20633 ppmw), Cr (4235–7362 ppmw), Sc (1767–2966 ppmw), and V (190–442 ppmw). From the green rim to colorless core, the charts showed a positive correlation between these elements and the green color. However, three samples (14–16) showed an opposite trend of Fe, Sc, and V, because the colorless core was too small.
Variations in Properties. The RI, SG, pleochroism, and fluorescence of the samples were consistent with the properties of the Swat emeralds studied by Gübelin (1982) and Bowersox and Anwar (1989). Compared with Afghan emeralds (no =1.572–1.580, ne=1.580–1.590, and SG=2.68–2.74; Bowersox et al., 1991; Saeseaw et al., 2014), Swat emeralds have higher values of RI and SG, which may be explained by the fact that Swat emeralds have higher alkali metal content (avg. 21040 ppmw) than Afghan emeralds (avg.10780 ppmw; Saeseaw et al., 2014). Meanwhile, trapiche-type emeralds from Swat Valley showed higher RI than regular Swat emeralds, possibly because their Fe content was higher (avg. 17801 ppmw) than that in other Swat emeralds (avg. 9265 ppmw).
Microscopic Inclusions. Swat trapiche-type emeralds are different from Colombian trapiche emeralds in their structural characteristics and chemical composition. The black arms of Colombian trapiche emeralds are composed mainly of carbonaceous material and albite (Ohnenstetter et al., 1998), while the arms of Swat trapiche-type emeralds are a mixture of hematite and graphite. Gao et al. (2019) identified the black arms as magnetite, while the mixture of hematite and graphite was identified in this study. Hematite (Fe2O3) indicates oxidation conditions, while the magnetite (Fe3O4) is formed under reducing conditions. Thus, there is a transformation between magnetite and hematite under different redox conditions.
Swat emeralds appear to have characteristic multi-phase inclusions. Descriptions of multi-phase inclusions in Swat emeralds are available in the gemological literature (Gübelin, 1982; Bowersox and Anwar, 1989), but with few details. Three-phase inclusions in Swat emeralds were rather rare. Three-phase inclusions occur in emeralds from Colombia, Panjshir (Afghanistan), Davdar (China), and Kafubu and Musakashi (Zambia). But this is the first time that specific components of three-phase inclusions have been reported in Swat Valley emeralds from Pakistan, which are different from the jagged three-phase inclusions in Colombian emeralds. The outlines of the cavities of the three-phase inclusions are typically hexagonal and regular, suggesting that they were formed at the same time as the emerald host. The solid phase is magnesite, unlike three-phase inclusions from any other source (Saeseaw et al., 2014). Furthermore, the mixed gas of three-phase inclusions (CO2 + N2) in trapiche-type emeralds is different from that in regular Swat emeralds (CO2 + N2 + CH4), which shows some different conditions of formation in trapiche-type emeralds. The solid inclusions hematite, magnetite, rutile, graphite, and siderite identified in this study are new for emeralds from Swat Valley.
Trace-Element Variations. Several published studies represent an early attempt to use trace elements for provenance purposes (Saeseaw et al., 2014, 2019; Carlo et al., 2018), but the data for Swat emeralds is scarce. In this study, 27 spots on 11 regular Swat emeralds were analyzed via LA-ICP-MS. Logarithm plots of trace elements were applied to detect possible correlations when distinguishing geographic origin, so adding LA-ICP-MS data from other main emerald deposits in the world is necessary, such as Colombia, Kafubu from Zambia, Brazil (Zwaan et al., 2012), Panjshir from Afghanistan, Swat from Pakistan (Carlo et al., 2018), Khaltaro from Pakistan (Laurs et al., 1996), Russia (Saeseaw et al., 2019; Carlo et al., 2018; Karampelas et al., 2019; all averages), Ethiopia (Saeseaw et al., 2019; Carlo et al., 2018; Karampelas et al., 2019; all averages), Egypt (Carlo et al., 2018), India (Carlo et al., 2018), and Malipo from China (Zheng et al., 2019). The inclusions of Ethiopian and Russian emeralds (Saeseaw et al., 2019) are very similar to those in Swat emeralds. But the high Cr (avg. 7471 ppmw), high V (avg. 565 ppmw), and high Fe (avg. 9265 ppmw) content can clearly separate the Swat emeralds from Ethiopian (avg. 3655 ppmw Cr; avg. 112.70 ppmw V; avg. 4867 ppmw Fe) and Russian (avg. 905.27 ppmw Cr; avg. 80.64 ppmw V; avg. 1600.67 ppmw Fe) emeralds (Karampelas et al., 2019). The plot of Cs versus Rb and Li versus Cs showed a positive correlation (figure 19 and 20), but there is some overlap for emeralds from Swat Valley, Russia, Ethiopia, India, Egypt, and Zambia. The plot of Li versus Sc proved useful in separating Swat Valley from most occurrences (figure 21), but there is a small overlap for emeralds from Pakistan, Egypt, and Afghanistan. It also showed Swat emeralds contained high Cs and Li, which can be used to distinguish among Swat, Egyptian, and Afghani emeralds. Particularly, the average of Mg concentrations (34263 ppmw) in Swat emeralds is the highest among worldwide sources.
Overall, the gemological properties of Swat samples are distinct and can be used in origin determination. Relatively higher values of RI and SG are related to rich alkali metal contents in Swat emeralds. The main chromophores in Swat emeralds are Cr3+, V3+, Fe3+, and Fe2+, of which Cr3+ is the most important cause for green color (figure 22). But the spectrum of the trapiche-type emerald illustrates the strong Fe3+ band at 370 nm, different from regular Swat emeralds.
This is the first time that the gemological and geochemical details of trapiche-type emeralds from Swat Valley have been published. Compared with regular Swat emeralds, trapiche-type emeralds show higher RI because of higher Fe content. There are four parts: one or two colorless beryl cores, a light green hexagonal growth zone area, a green rim, and six (or two sets of six) black hematite and graphite arms. The chemical contents of Fe, Cr, Sc, and V in trapiche-type emeralds have a trend from low to high going from the colorless core to the green rim.
Some typical inclusions are present in Swat emeralds. First, one solid magnesite, one CO2 + N2 bubble and liquid phase were identified in three-phase inclusions. Second, the gaseous mixture (CO2 + N2 + CH4 or CO2 + N2) in necked-down, elongated, or irregular two-phase inclusions is not identical to other origins. Third, the solid mineral inclusions in regular Swat emeralds typically included magnesite, dolomite, quartz, fluorite, siderite, talc, muscovite, rutile, hematite, magnetite, and graphite. In the trapiche-type emeralds, hematite, graphite, and two-phase inclusions were commonly observed.
The infrared spectrum illustrates the typical features that the absorption of the type II H2O (7095 and 5267 cm–1) is stronger than that of the peak of type I H2O (6843 cm–1). The significant peak at 2356 cm–1 corresponds to CO2. Some of the samples are filled with mixtures of cedarwood oil and Araldite 6010.
Trace-element chemistry can provide additional valuable tools for origin determination. The logarithmic plots of trace element data from LA-ICP-MS analyses such as Li versus Sc, Cs versus Rb, and Li versus Cs are distinct for this locality. These emeralds contain relatively high chromium (avg. 7471 ppmw), alkali metal (avg. 21040 ppmw), magnesium (avg. 34263 ppmw), and iron (avg. 9265 ppmw), as well as scandium (avg. 633 ppmw). Based on the identification criteria discussed above, especially microscopic and chemical analysis, separating Swat emeralds from other sources is possible.
Hongshu Guo, Yuyu Zheng, and Zhulin Sun are obtaining master’s degrees in gemology, and Dr. Xiaoyan Yu (firstname.lastname@example.org, corresponding author) is director of the gemology teaching and research group and a professor of gemology and mineralogy, at the School of Gemmology, China University of Geosciences in Beijing. Dr. Ng is the founder of the Centre for Gemmological Research in Hong Kong.
The authors would like to thank Rujie Wang, Hong Chen, Fei Liu, Darwin Daniel Fortaleché, and Cloud Walker Jewel, Inc. for providing samples and valuable information. We also express our gratitude to Zhechen Li for Raman testing support. We sincerely thank every reviewer for useful comments and suggestions. This research was supported by the Fundamental Research Funds for the Central Universities (grant number 53200759978) and China Geological Survey Project “Geology of Mineral Resources in China” (grant number DD20190379-88) to Prof. Xiaoyan Yu.
