Bench Tip 1: How To Sharpen A Drill Bit
How to Sharpen a Drill BitSmall, fine drill bits used for jewellery making will become dull with normal use. Worn cutting edges make tasks more difficult and time-consuming and can cause costly accidents, including damage to jewellery and gemstones or even injury. Maintaining the cutting surfaces on your tools will ensure clean, consistent work at the bench.

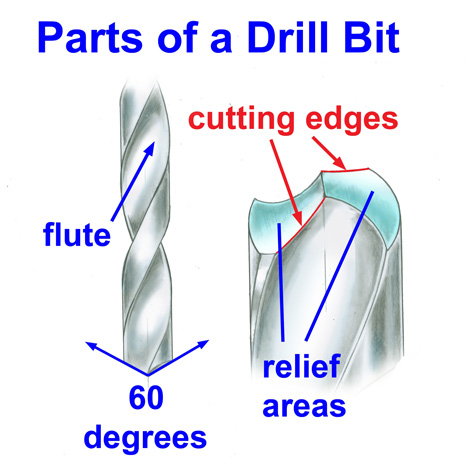

This instalment will teach you how to sharpen the cutting edges of a fine drill bit. There are different styles of bit tips, but this example features a chisel tip. Let’s begin with a look at its anatomy.
A drill bit has two cutting surfaces, one on each side of its centre axis, that are cut at an angle of approximately 60 degrees.

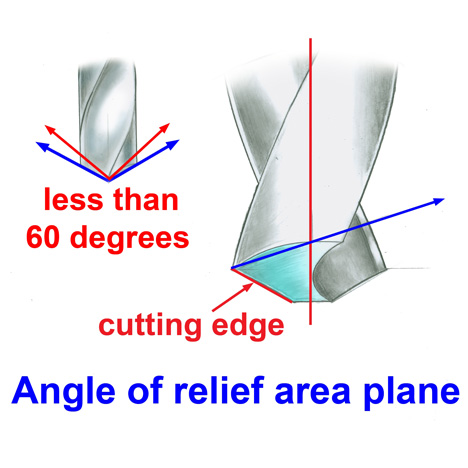

Notice that each of these angled surfaces is also cut at a slightly narrower angle, creating another plane. This plane creates the cutting edge as well as a relief area behind that edge. This relief area prevents contact with the metal being cut as a hole is drilled, which reduces drag and friction.
The helical groove in the drill bit is called the flute. It acts as a channel to guide the cut material out of the hole created by the two cutting edges.
We will file each of the relief areas to sharpen the drill bit, maintaining the same angle as these planes, which is important for the drill bit to perform properly after sharpening. The cutting edges will be honed by reducing a small amount of metal from each surface.
Begin by inserting and tightening a silicon carbide separating disc in a no. 30 handpiece of a flexshaft. Secure the worn drill bit in a screw mandrel and brace against the bench pin as you position the bit to be filed on the relief area.

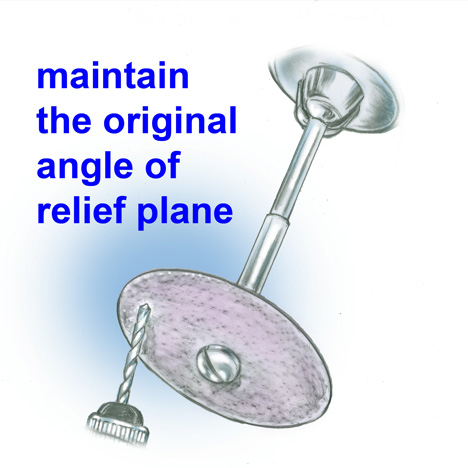

Carefully lower the separating disc to lightly touch the targeted surface. Without changing the angle, rotate the bit in the holding device and repeat on the opposite relief area plane. Once this is complete, you will have a newly sharpened bit. This may take a bit of practice, but it’s a valuable technique that can save time on the job.
