国际宝石新闻 Gems & Gemology, Summer 2018, Vol. 54, No. 2

Trapiche-like Amethyst from Brazil


四颗达碧兹状紫水晶凸圆宝石。

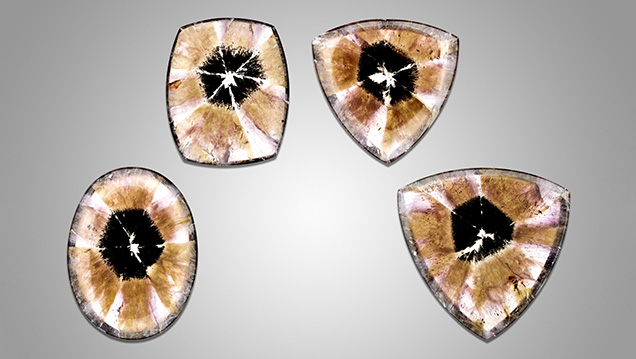

Figure 1. Left to right: 16.73 ct, 14.50 ct, 17.03 ct, and 27.75 ct trapiche-like amethysts. The four cabochons were cut with the base perpendicular to the c-axis (optic axis). Photo by Diego Sanchez.

Minerals such as corundum, beryl, tourmaline, and quartz, which belong to either the trigonal or the hexagonal crystal system, can show a trapiche-like texture with a hexagonal core and six extended arms when viewed down the c-axis. Four trapiche-like amethyst cabochons (figure 1) were submitted to GIA’s Carlsbad laboratory by L. Allen Brown (All That Glitters, Methuen, Massachusetts) for scientific examination. Each was characterized by a hexagonal black core and six brownish arms with pale purple color zoning in between. Magnification revealed that the black core was composed of dense metallic dendritic inclusions (figure 2, left). The brown color of the arms was caused by numerous tufts of tiny inclusions (figure 2, right), some of which resembled either brushes or bullets.

Raman spectra were collected with a Renishaw inVia Raman microscope system. The confocal capabilities of the system allowed inclusions beneath the surface to be analyzed. The black core was identified as an FeS2 (iron sulfide) mineral, likely pyrite. The brownish tiny inclusions in arms could not be identified but were likely goethite (E.J. Gübelin and J.I. Koivula, Photoatlas of Inclusions in Gemstones, Vol. 2, Opinio Verlag, Basel, Switzerland, p. 558) based on appearance and occurrence in quartz matrix.

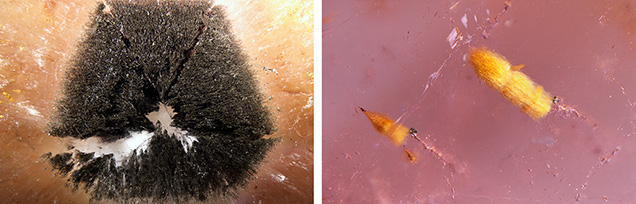

Metallic dendritic (left) and fibrous inclusions (right) in the trapiche-like amethysts.
Figure 2. Left: Metallic dendritic inclusions compose the hexagonal black core in the amethysts; field of view 19.27 mm. Right: Brownish and yellowish brush-like and bullet-like fibrous inclusions in the trapiche-like arms; field of view 2.34 mm. Photomicrographs by Jonathan Muyal.

The texture of trapiche-like amethysts is often caused only by the distribution of color-inducing elements (K. Schmetzer and B. Williams, “Gem-quality amethyst from Rwanda: Optical and microscopic properties,” Journal of Gemmology, Vol. 36, No. 1, 2018, pp. 26–36). The fact that the texture was caused by two sets of distinctly colored inclusions makes these four gemstones unique.

Ziyin Sun and Jonathan Muyal are staff gemologists, and Dylan Hand is an analytics technician, at GIA in Carlsbad, California.
